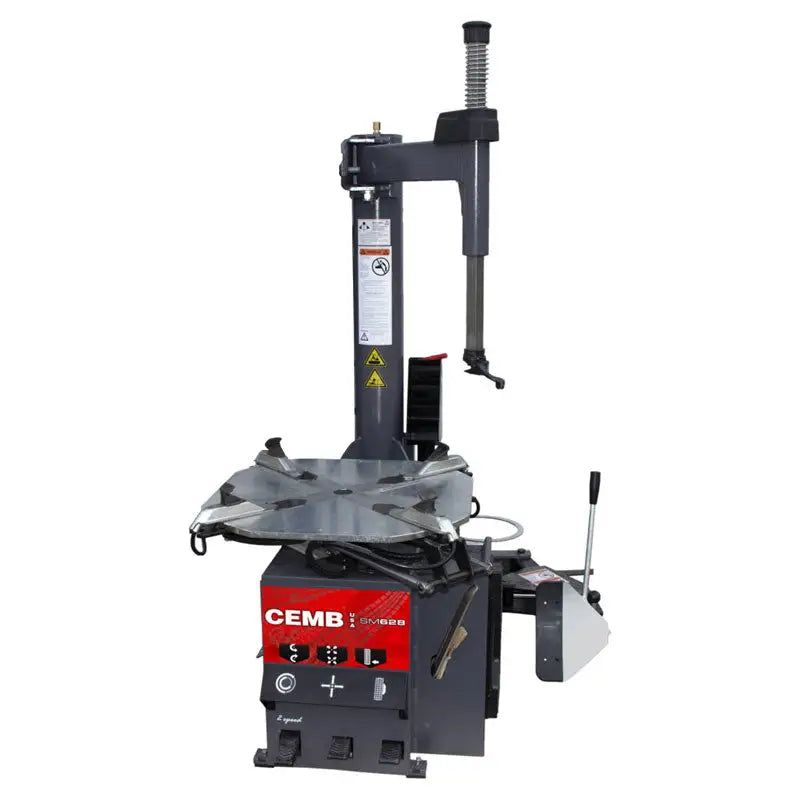

Professional grade swing arm tire changers for OEM and oversized tires and custom wheel applications. Features an optional high-performance Bead Press System / BPS which is highly recommended to easily aid in the servicing of low-profile, run-flat, on/off-road tires and commercial light trucks with stiff sidewalls and difficult rims with deep drop centers.
Features:
- Polymer Mounting Head - Standard quick-change steel and polymer mounting head kit is supplied standard allows simple and fast change over from steel wheels to the protection of alloy wheels.
- Table Top Clamping - Is self-centering with rim diameter index guides to aid in simple external rim clamping avoiding tire and rim scratches.
- Two-Stage Inflation - Utilizes bead sealing jets optimized by placement at the clamping jaws.
- High Torque Motor - 220v 2-speed motor and heavy-duty transmission handles the most difficult tires and deep drop center rims.
- Bead Breaker Shovel - Foot-operated side-mounted bead breaker shovel combines speed with power for everyday wheel applications to save time.
Specs:
Power Supply: 220V, 1ph, NEMA Plug L6-20P
Air Pressure: 145 psi (10 bar)
Rim Diameter (Ext.): 12in - 26in
Tire Diameter: 44in (1118 mm)
Max. Wheel width: 16in (406 mm)
Turn Table Speed: 8-15 rpm
Shipping Weight: 440 lbs (200 Kg)
