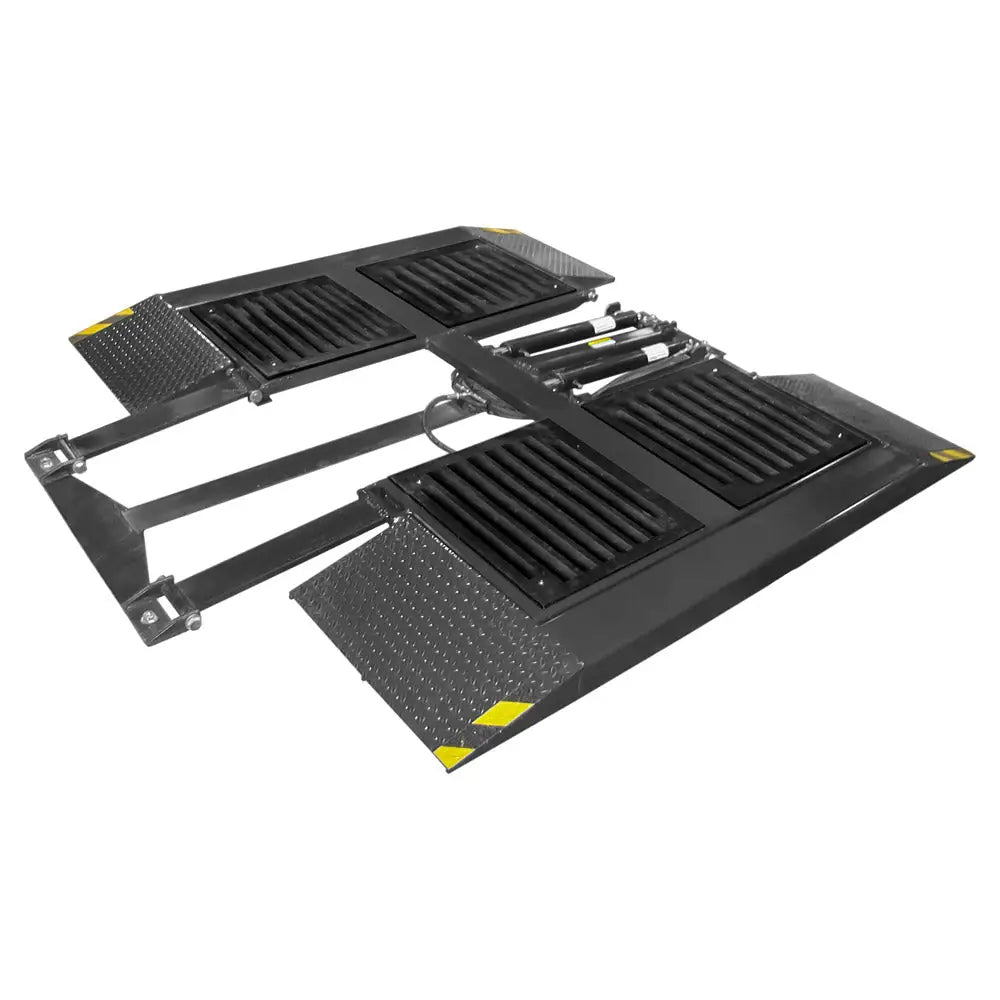

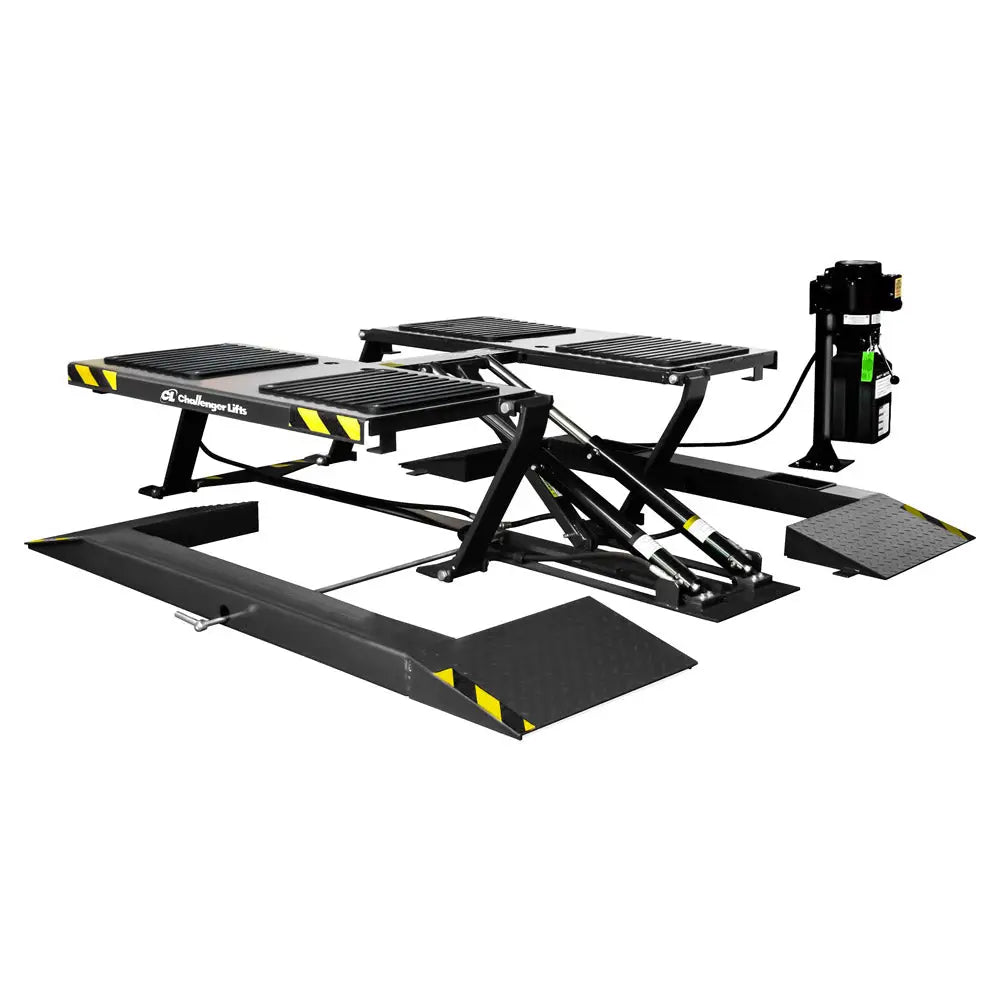

Challenger’s shortrise lift is an excellent choice for brake and tire servicing needs. Dual hydraulic cylinders provide a 10,000 lb. capacity to lift vehicles ranging from small passenger cars to light trucks. Standard spotting blocks and optional auxiliary adapters reach a wider range of vehicle lift points.
Features:
- 10,000 lb. lift capacity
- ALI Certify
- 22” raised height
- Standard two-position spotting blocks reach pickup points on a broader range of vehicles.
- Three locking positions for ease of use
- Powder coat finish provides long-lasting durability.
- It can be mounted flush.
Specs:
Lifting Capacity: 10,000 lbs.
Raised Height: 22in
Lowered Height: 4.25in
Locking Bar Heights: 13.75in, 18.325in, 21.25in
Low Adapter Position: 4.75in
High Adapter Position: 6.75in
Overall Width: 85in (+ 2.5in for handle)
Outside Width of Platforms: 72in
Width between Platforms: 23in
Platform Overall Length: 50in
Ramp & Platform Overall Length: 82.5in
Overall Length: 92.875in
Rearward Movement: 13.25in
Motor / Voltage: 1HP, 115v, 60Hz, 1Ph
ALI/ETL Certified: Yes
Colors Available: Black
