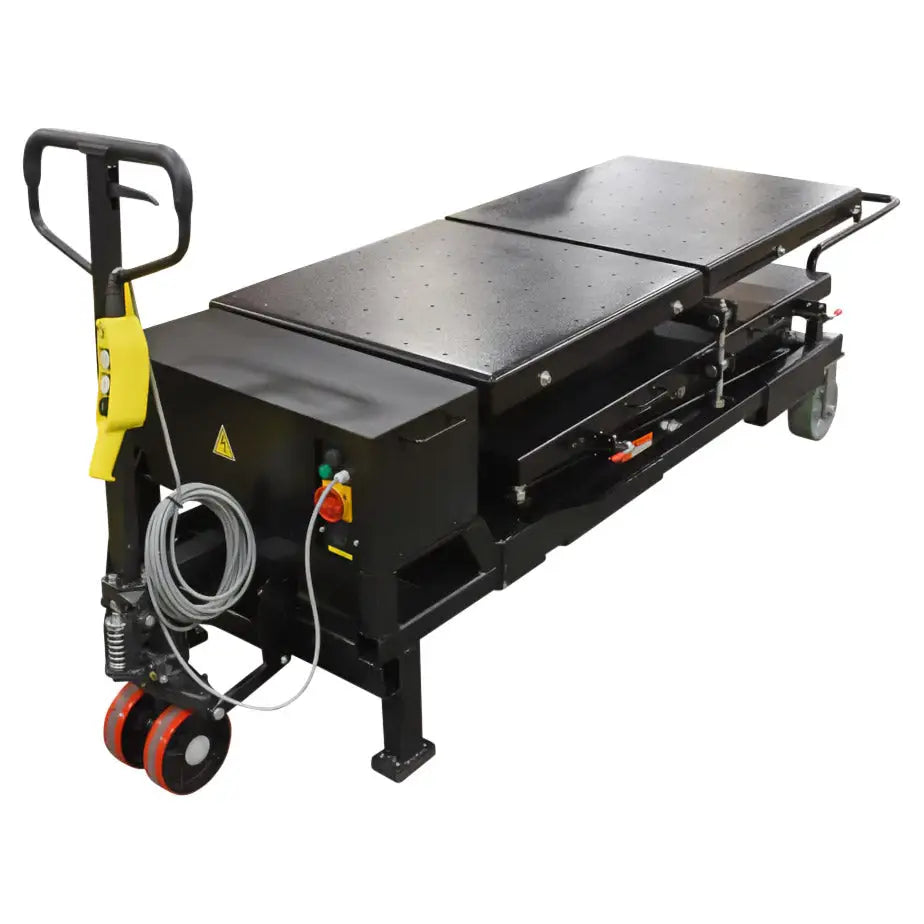

Looking to make working on electric vehicles safer and more efficient? This electric vehicle battery lift table has a capacity of 3,300 lbs, making it perfect for removing and installing batteries, transmissions, gearboxes, clutches, engines, and various components of the car chassis. Plus, the pallet-jack style handle makes maneuvering the table a breeze.
Features:

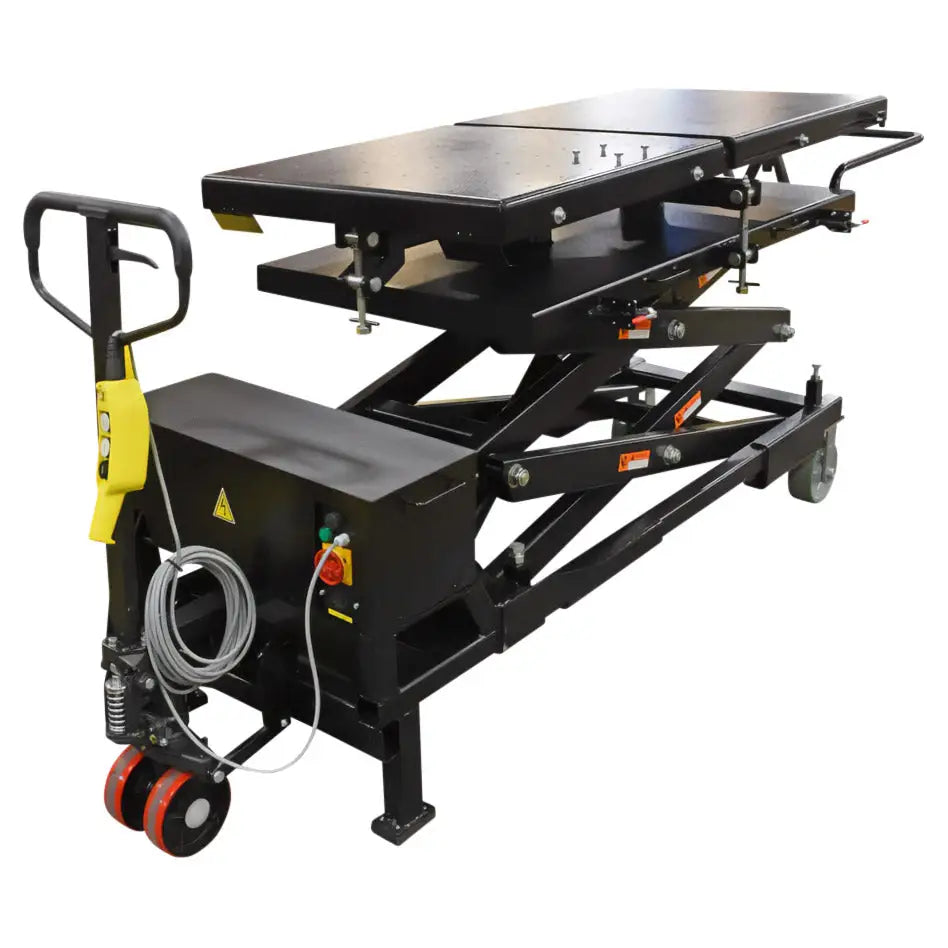

- Scissor-style lifting

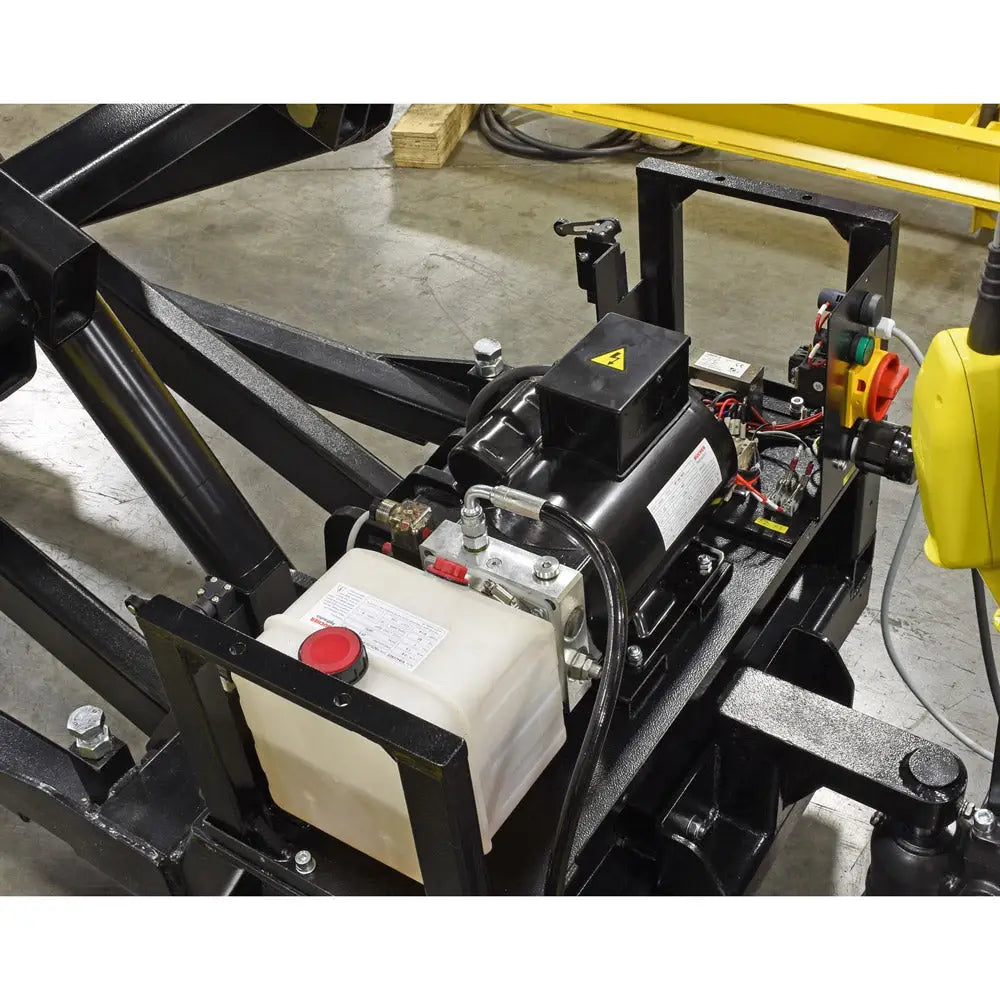

- Hydraulic cylinder
- Max reachable height 76.5”.
- Easy maneuvering, thanks to pallet-jack style handle
- Extending, adjusting, and tilting the top plate
- Plugs into any 120v outlet
- Power cord included
- Complies with ASME PASE-2019
Specs:
Lifting Capacity: 3,300 lbs.
Rise Height: 76.77in
Collapsed Height: 29.53in
Platform Height Adjustment: 1.77in
Platform Angle Adjustment: 6deg.
Platform Length: 68.54-81.34in
Platform Width: 31.5in
Deck Length: 59.06in
Base Height: 8.07in
Wheel Diameter: 7.87in
Overall Length: 116.375in
Motor: 2HP
Power Supply: 110v, 60Hz, Single Phase
Current Draw: 14 Amps
Control Voltage: 24v
Hydraulic Pressure: 3,625 psi
Safety Limit Switch: Yes
Full Stroke Time (Rated Load): 45s/70s
Full Descent Time (Rated Load): 55s
Shipping Weight: 1,900 lbs
Shipping Dimension: 88 x 41 x 37in
