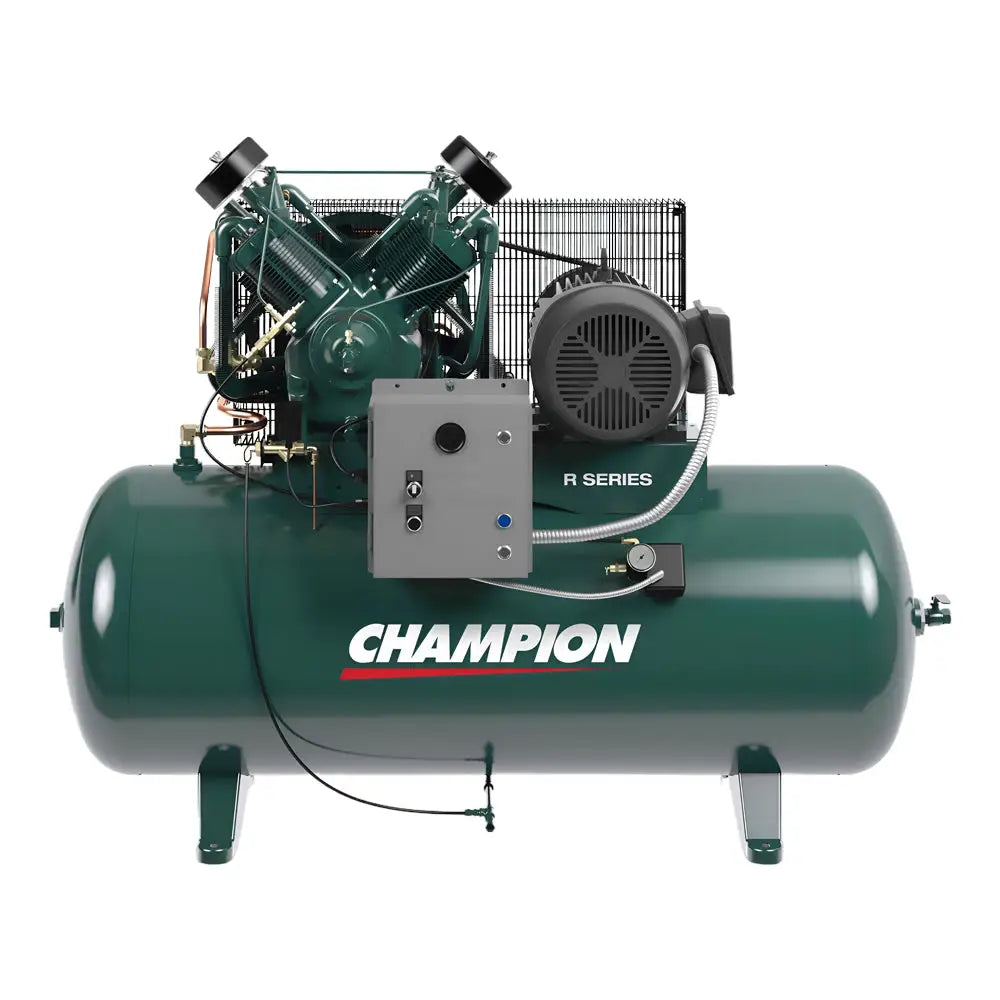

The Champion R-Series HR10-8 air compressor is a powerful and reliable machine designed for industrial and commercial applications. With a 10 HP motor and an 80-gallon tank, it delivers high-volume air delivery and continuous operation. It is fully customizable and even has NEMA 4 options available for outdoor use. It's perfect for powering pneumatic tools and machinery in any setting, and it's a great investment for anyone looking to increase their productivity and streamline their operations.
Features:
- Mounted NEMA 1 Control Panel
- Includes control voltage transformer
- Start/stop pressure switch control
- ASME coded receiver
- 1800 RPM Motors
- Intake Filter and Silencer
- Enclosed Belt Guard
- Loadless Starting
- California Code Compliant
Specs:
Configuration: Simplex
Pump Model: R30
Pump RPM @ 175 PSI: 718
ACFM @ 80 PSIG (m3/hr @ 8 BAR): 35.7 / 60.7
ACFM @ 125 PSIG (m3/hr @ 8 BAR): 34.7 / 59
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 33.8 / 57.4
Control Panel Level 1: NEMA 1 (Standard)
Panel Mounting: NEMA 1/4
California Code Compliant: Yes
Tank Configuration: Horizontal
Voltage: 208/230/460/575
Phase: 3
Tank Size: Gallons (Gal/Liters): 80 / 303
Est. Ship Weight: (Lbs./kg): 776 / 352
Model Number: HR10-8
Application:
Automotive repair shops
Heavy equipment repair shops
Woodworking shops
Metalworking shops
Construction sites
Workshops
Pneumatic tool operations
Machinery operation
