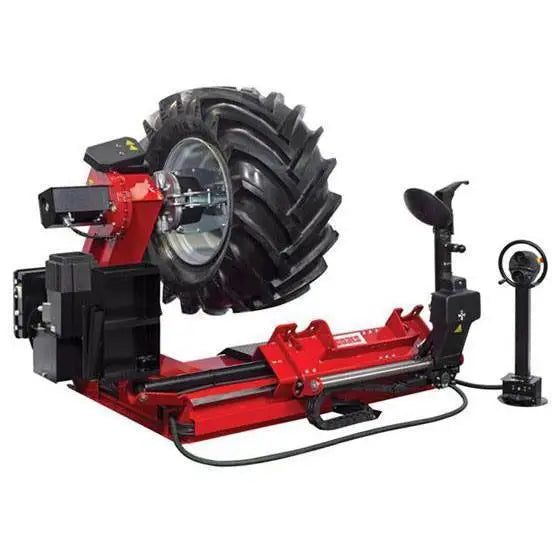

CHD 9551 Heavy Duty Truck Tire Changer Machine for 14-46 & 51 Inch Wheels - Professional Auto Repair Shop Equipment for Semi Trucks and Commercial Vehicles

$20182.25 $36695 -45% OFF

Free shipping on all orders over $50

7-15 days international

15 people viewing this product right now!

30-day free returns

Secure checkout

52336580

Guranteed safe checkout

Description

Our top-of-the-line changer is designed for high-volume shops. The CHD-9551 makes it easy to handle the toughest super-single, skidder, agricultural, and off-road tires on the market.

Features:

Offers the most automated features and widest range of fittings in the CHD line
Remote control rotating tool head/arm for the fastest, easiest tool changes in the business
Optional wireless remote gives you freedom to move around the machine without cumbersome cables
Handles rims from 14in to 46in (up to 56in with clamp extensions) and tires up to 95in in diameter and 51in wide
Free Installation and Training

Specs:

Max. Tire Diameter: 95 in (2400 mm)
Max. Tire Width: 51 in (1300 mm)
Rim Diameter Range: 14 in -46 in (47 in -56 in with clamping extensions)
Electric Specifications: 208-230VAC, 3ph, 60Hz, 22Amp
Hydraulic Motor Power: 2.9 HP (2.2 kW)
Chuck Rotation Motor Power: 3.2-4.4 HP (2.4-3.3 kW)
Max. Chuck Torque: 7017 ft/lbs(5175 Nm)
Clamping Power: 10,802 lbs (4900 kg)
Chuck Rotation Speed: 5-11 rpm
Max. Wheel Weight: 3970 lbs (1800 kg)
Acoustic Pressure: lessthan 70dBA
Single piece frame with solid floor-plate: Yes
Tool Arm Positioning: Remote operated
Tool Head Positioning: Remote operated
Max. Overall Dimension: 112 in (w) x 81 in (d) x 75 in (h)
Weight with Standard Accessories: 2282 lbs (1035 kg)

Standard:

Large Double Tool
Large Tire Bar
Small Tire Bar
Single G-clamp (for steel wheels)

Optional:

Alloy Tubeless Roller
Bead lifting guide bar for agricultural tires
Single G-clamp (for alloy wheels
Pair of G-clamps for bead loosening on tube tires with rim ring
Set of 4 clamping protectors for alloy wheels
Set of 4 clamping extensions 47 in -56 in
Radio Remote Control Set
