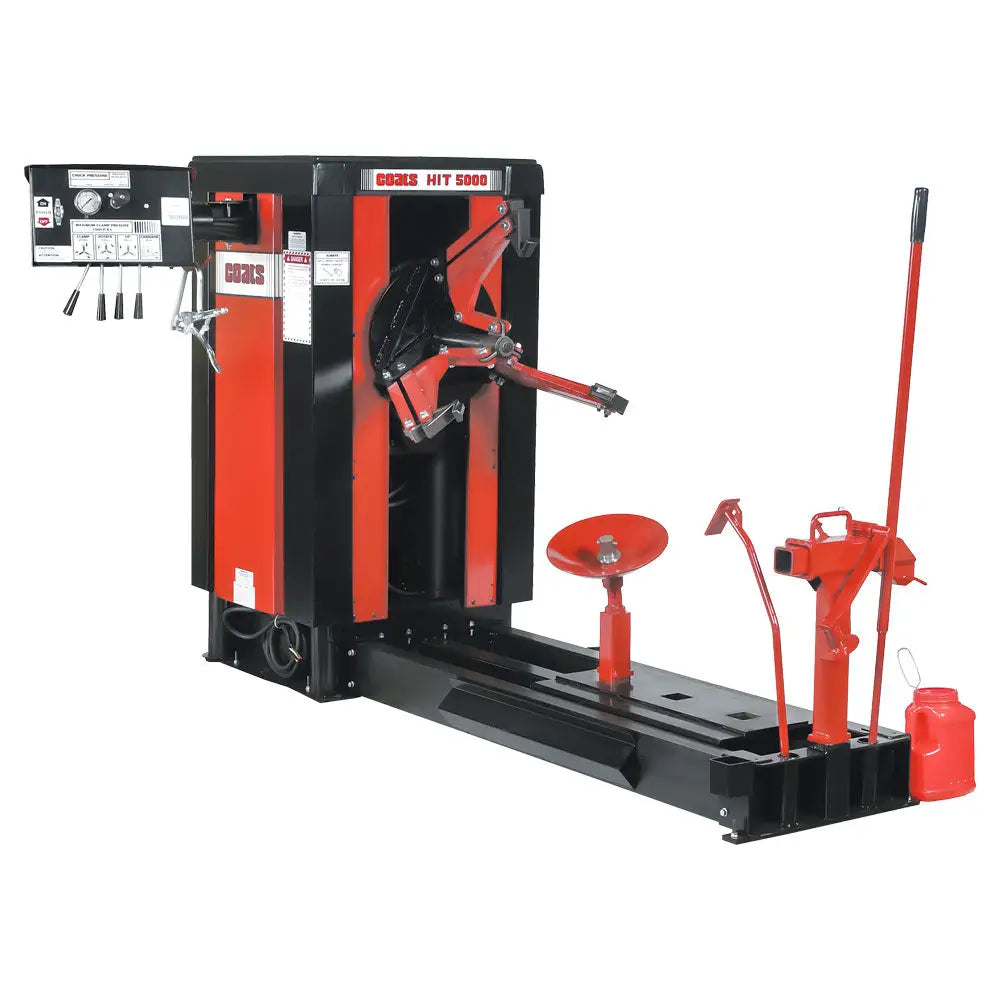

Coats HIT5000, Heavy Duty Truck Tire Changer for Tube and Tubeless Tires such as heavy-duty truck and agri tires. The rim service range is from 15in to 38in.
Features:
- Easy-to-use swing-arm houses all hydraulic controls with a dedicated lever for each powered function.
- Self-centering hydraulic clamping chuck.
- Adjustable pressure regulator ensures proper matching of chuck pressure to rim strength.
- Heavy, tapered roller bearings and a dual-direction hydraulic motor provide smooth torque.
- Roller-type tire spreader standard.
Specs:
Operation: 3 Jaw Chuck
Wheel Handled: Budd & Dayton, Tube & Tubeless
Mount / Demount: Independent Hook & Roller
Tool Head Offset: Independent Removable, Mount in Table
Table Shape: Moving Table (Centered in Frame)
Wheel Clamping Method: 3 Jaw Chuck
Wheel Lift: Clamp Arm Lifting
Frame Structure: Center Carriage
Max Tire Diameter: 76in (1930mm)
Max Tire Width: 25in (635mm)
External Rim Diameter: 15in - 38in
Electric Specifications: 220v / 1ph or 220v / 3ph, 60Hz
Air Required: No
Max Chuck Torque: 2900 ft/lbs
Max Overall Dimension: 96in(w)x108in(d)x66in(h)
Weight: 1700 lbs.
