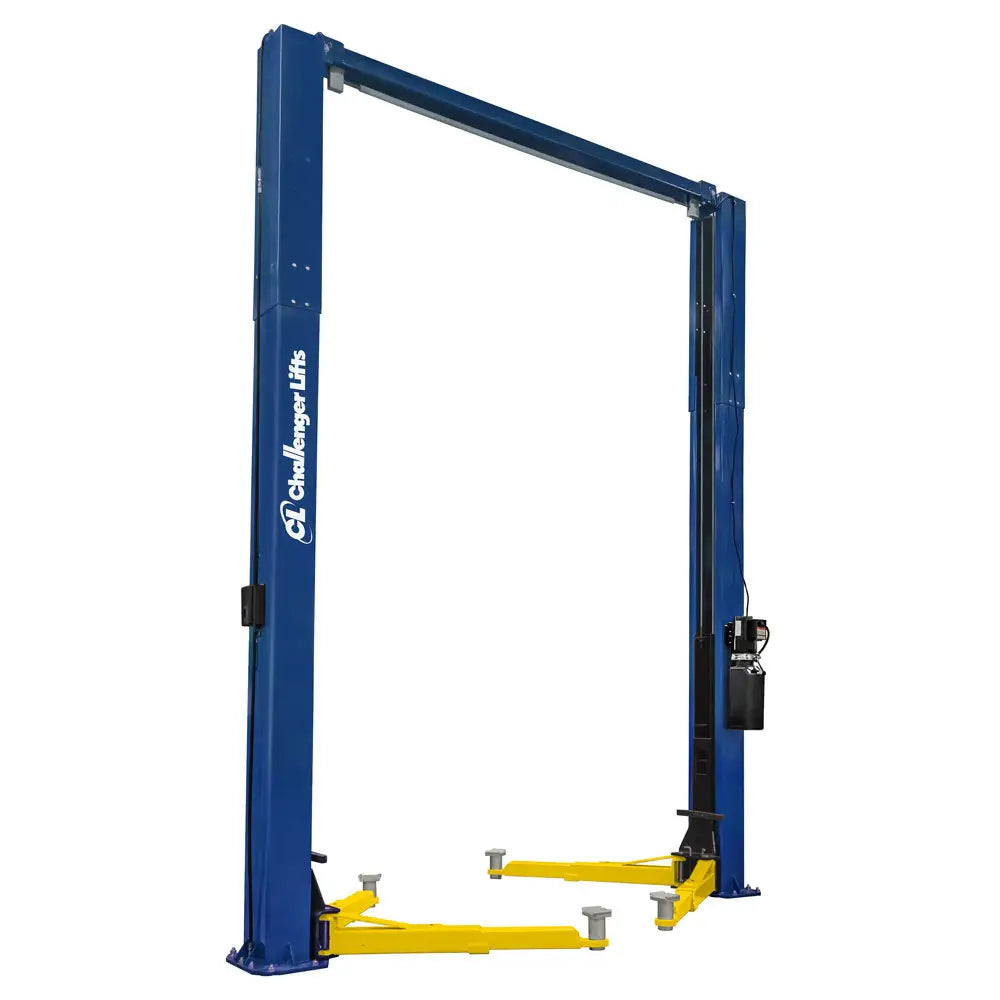

We designed our new E15 2-post lift to be an economic option for servicing vehicles up to 15,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Includes a built-in 2 foot column height extension to accommodate higher profile vehicles. The E15 also comes standards with stack adapters.
This lower cost option doesn't sacrifice the features you've come to expect. The jacketed single-point mechanical lock release system was once exclusive to our CL Series.
Features:
- 15,000 lb. lift capacity
- Heavy-duty 2-stage arms enable heavy-duty symmetric lifting
- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series
- Padded overhead shut off system prevents vehicle damage
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

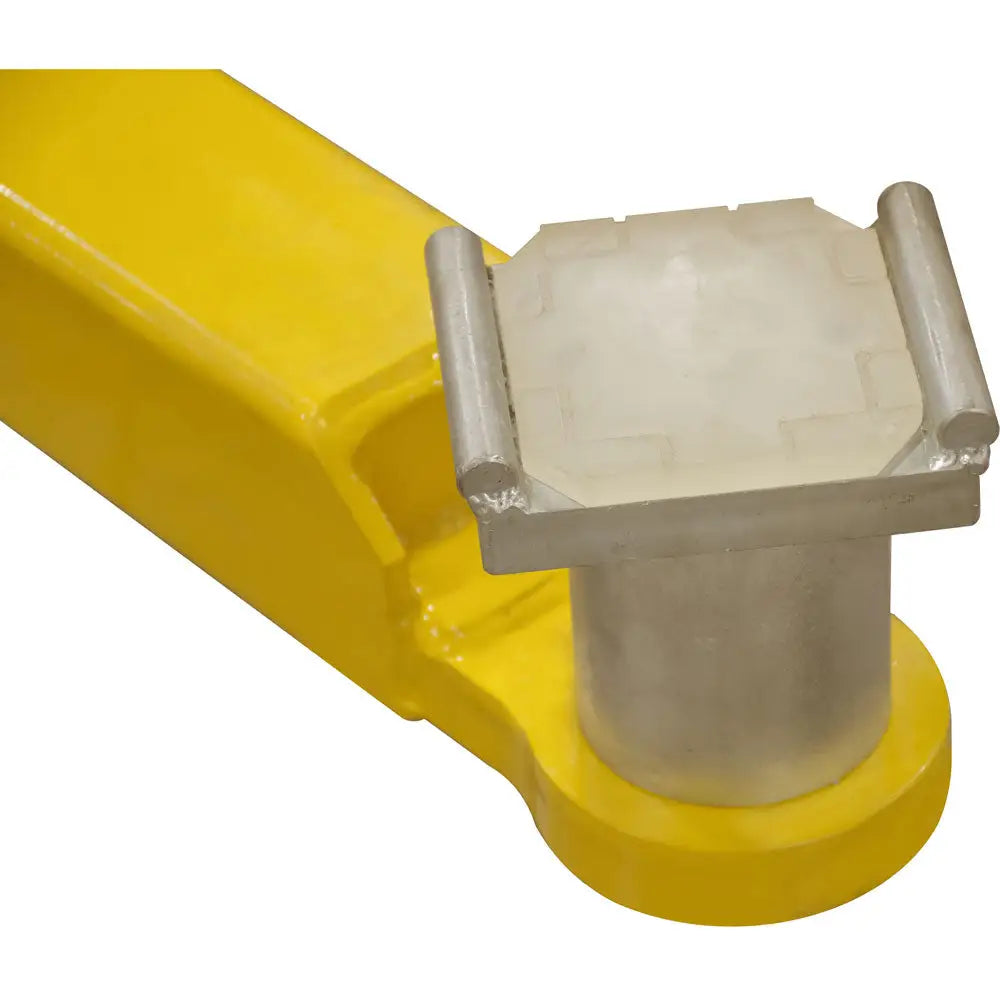

- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Specs:
Lifting Capacity: 15,000 lbs.
Arms: 2-stage front/2-stage rear
Lifting Configuration: Symmetric
Rise Height: 77.75in
Overall Height: 174in/198in
Overall Width: 147.125in
Drive-Thru Clearance: 109.375in
Floor to Overhead Switch: 166in/190in
Minimum Arm Reach: 36.5in
Maximum Arm Reach: 55in
Screw Pad Height: 5.25in-6.75in
Inside Columns: 122.25in
Ceiling Height Required: 175in/199in
Motor / Voltage: 2HP, 208v - 230v
Speed of Rise: 75 s
ALI/ETL Certified: Yes
Colors Available: Red, Blue
Includes:
4 x 4 in. Stack Extensions
2 x 8 in. Stack Extensions
2 x Organizer
