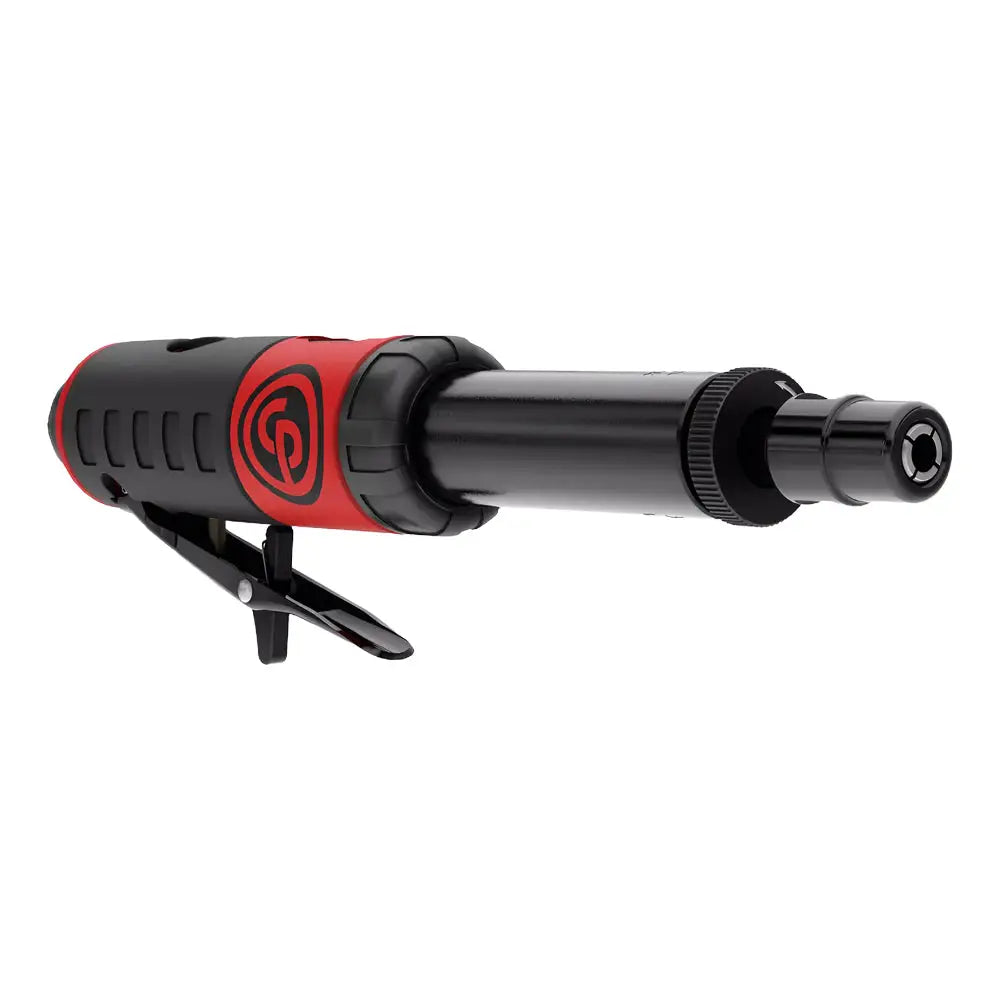

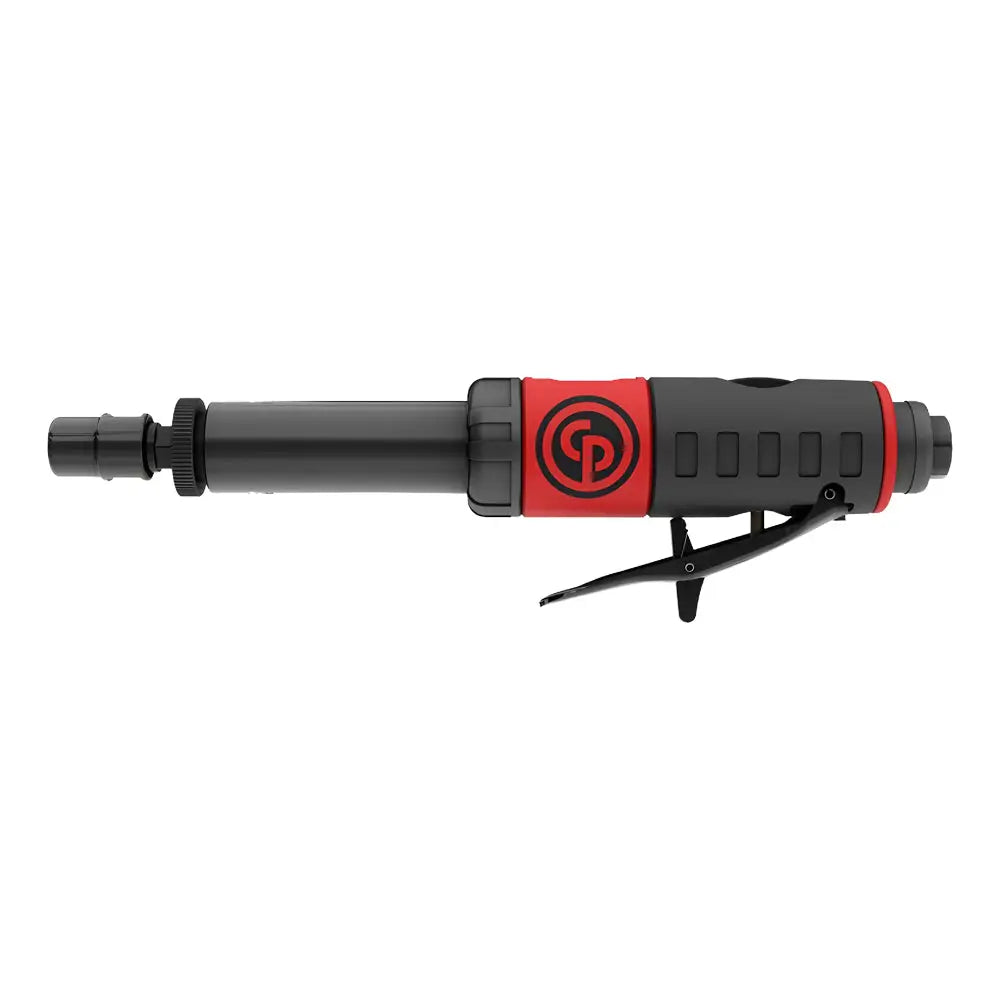

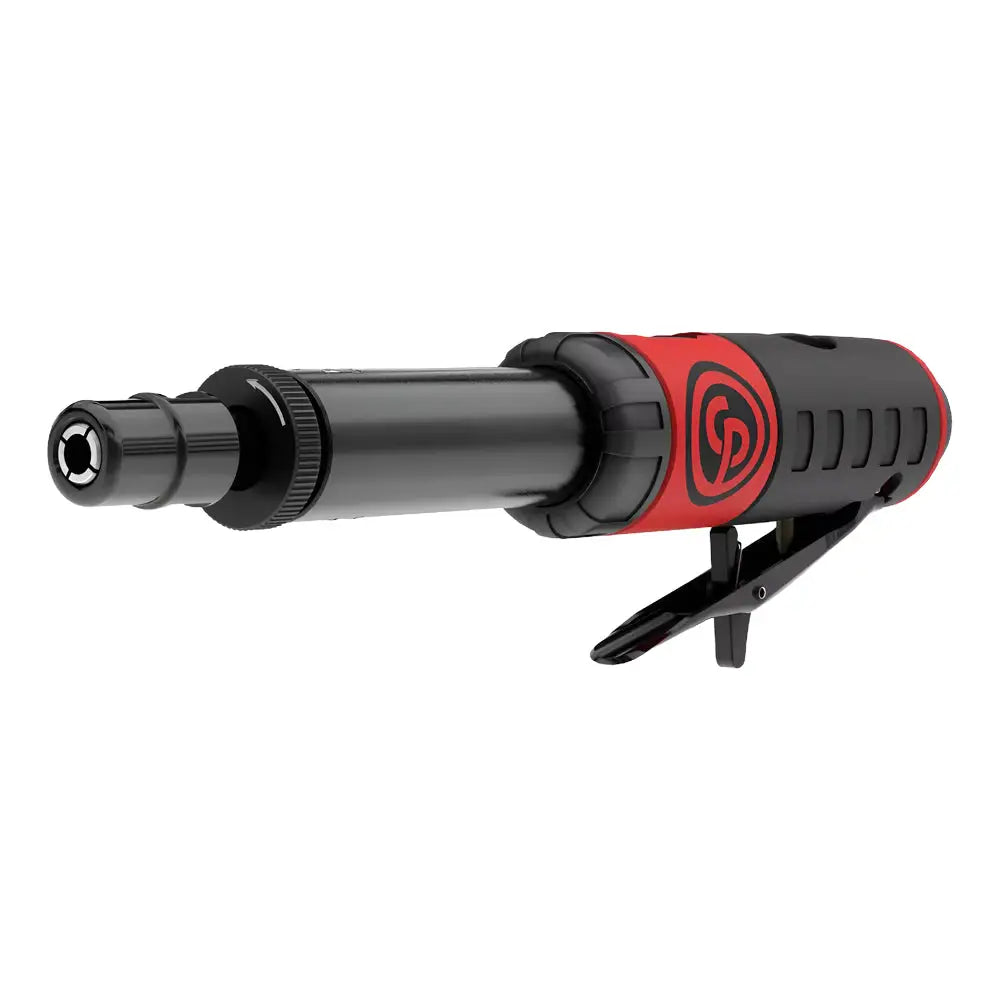

Introducing the 9.8" Extended Straight Air Die Grinder with 27,000 RPM, a powerhouse from the CP74 series by Chicago Pneumatic. This ergonomic and low-profile tool offers a hassle-free accessory change with its spindle lock system. The helical bevel gear design and speed governance maximize productivity while increasing comfort. Experience faster and easier accessory changes with the spindle lock, and enjoy the benefits of its easily changeable burrs using just one wrench. With its versatile heads and composite housing, this die grinder delivers exceptional performance for cutting, deburring, grinding, sanding, and more. It's perfect for body shops, MRO, and general applications, providing superior results on various materials like steel, cast iron, aluminum, and wood.
Features:
- Ergonomic design for comfortable handling
- Low-profile throttle lever enhances user comfort
- Fast and easy accessory changes with spindle lock system
- Spiral bevel gear design for durability and efficiency
- Speed governed for optimal productivity and longer abrasive life
Benefits:
- Effortlessly change carbide burrs with one wrench
- Secure grip and ergonomic handle prevent slipping
- Comprehensive application coverage with multiple head options
- Reduced heat transfer for improved motor and sleeve longevity
Specs:
Actual air consumption: 2.1 cfm
Air inlet thread size: 1/4 in
Box dimensions: 9.2*5.5*1.9 in
Collet size: 1/4 in
Free speed: 27000 rpm
Free speed air consumption: 2 3/4 cfm
Length: 9.8 in
Min. hose size: 3/8 in
Net weight: 1.43 lb
Power: 0.34 hp
Rear exhaust: yes
Sound Power: 87.1 db(A)
Sound pressure: 76.1 db(A)
Vibration: 4.9 m/s²
Vibration ISO: ISO-28927-12
Vibration uncertainty (K): 0.96 m/s²
Ref No.8941074100 (Part No.)
CP7405 (Standard)
CP7406 (90 Deg.)
CP7408 (120 Deg.)
CP7410 (9.8" Extended)
CP7411 (Straight)
CP7412 (13" Extended)
Application:

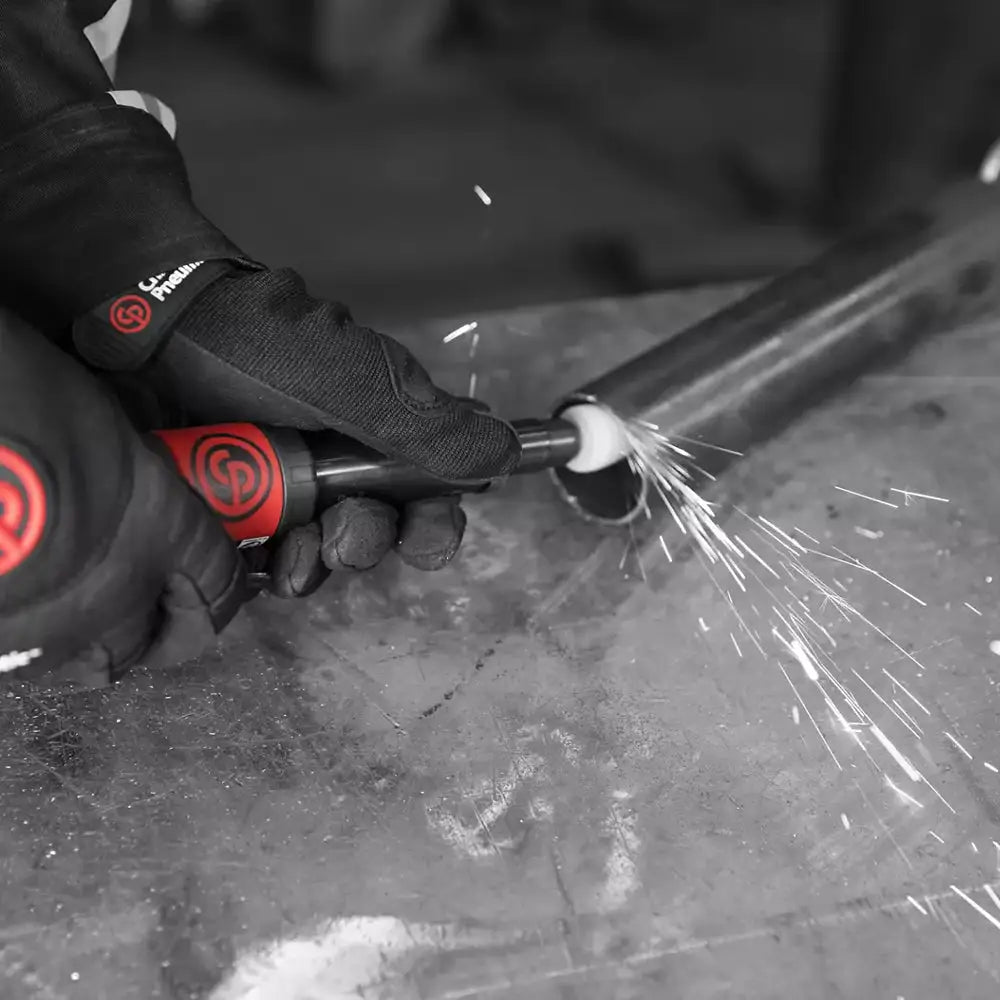

Cutting
Deburring
Grinding
Sanding
Weld Preparation
Wood Working
Steel Polisher
General Application
Remove & Cleaning
- Gaskets
- Surface Prep
- Rust
- Steel
- Cast Iron
- Aluminum
