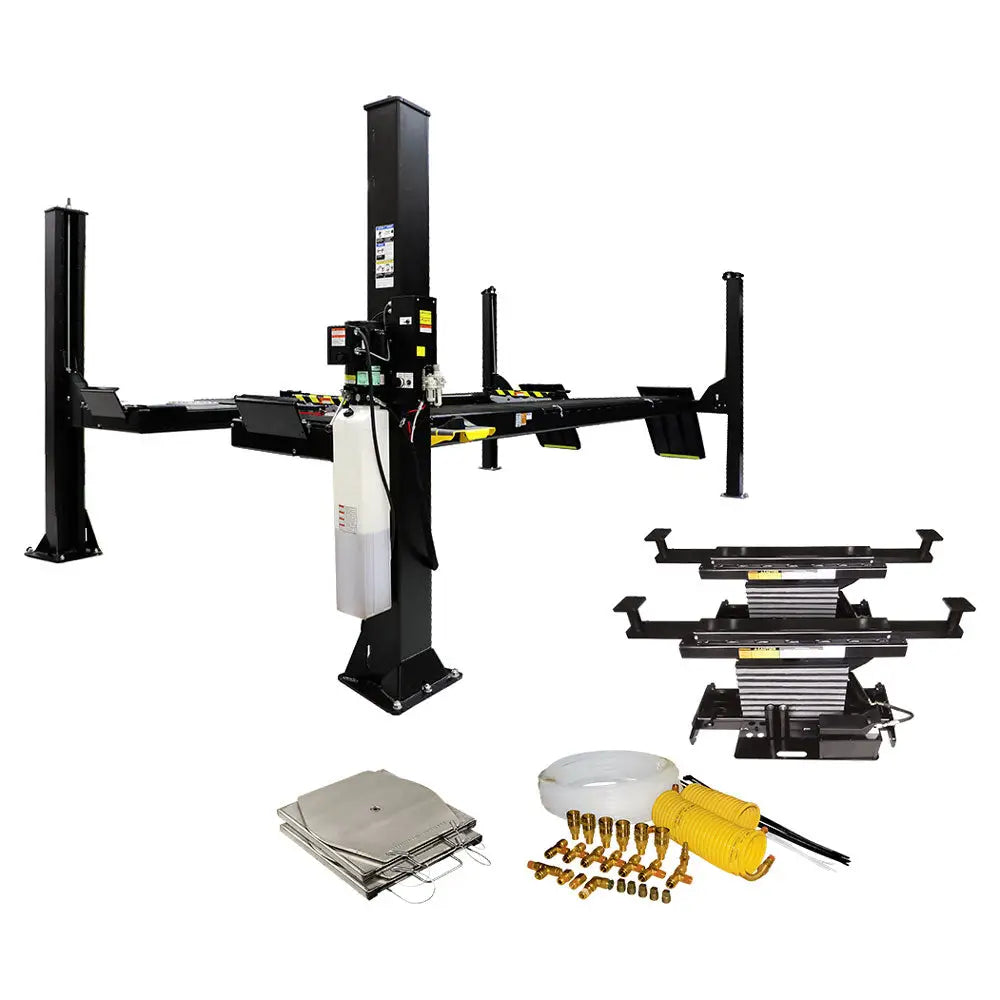

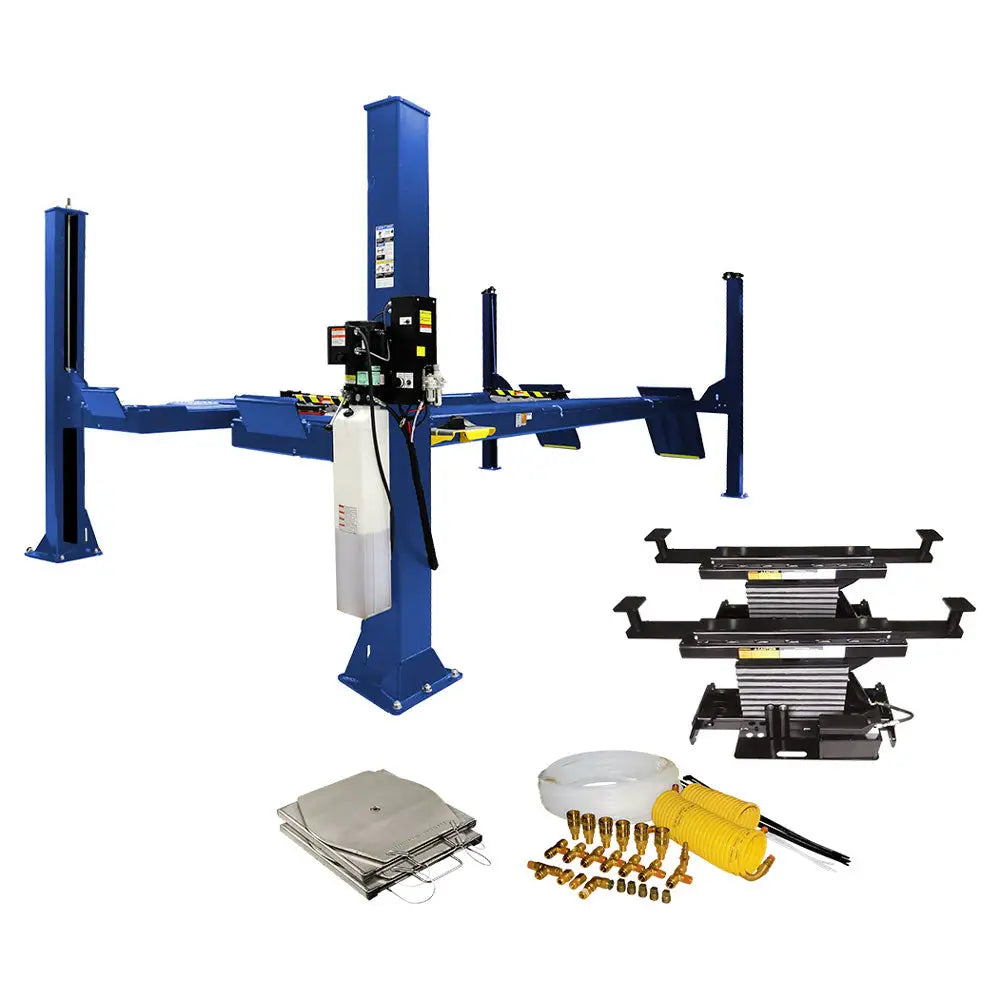

Looking to add a powerful and productive alignment lift to your shop floor? Check out our newly improved 15,000 lb 4-Post Alignment Lift! This open-front 167-inch Max 2-Wheel Alignment Lift comes with two 7.5K Rolling Jacks, two Stainless Turntables, a pair of Work Steps, and an Air Line kit. With all these great features, this Lift is perfect for any shop!
Features:
- All-new and wider 22 runways.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities.
- Louvered approach ramps prevent wheel spin and are more effective than diamond tread or abrasive strips.
- The existing UHMW internally encapsulated slide block is now compatible with the industry's latest imaging alignment systems.
- Include Acc. Rolling Jacks, Internal Airline System, & Stainless Steel Turn Plates
Specs:
Lifting Capacity: 15,000 lbs.
Open or Closed Front: Open
Overall Length: 250.5in
Overall Width: 142in
Inside Columns Front: 120.75in
Inside Columns Rear: 125.5in
Between Columns: 195in
Height of Columns Front: 99.25in
Height of Columns Rear: 98in
Height of Runways: 7in
Width of Runways: 22.375in
Width Between Runways: 40.625in
Max. Wheelbase: 183in
Rise Height: 78in
Max. 2 Wheel Alignment: 167.75in
Max. 4 Wheel Alignment: 68in - 158in
Air Supply Required: 90-120 psi
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Rise Time: 85 s
Min. Recomm. Bay Size: 14ft x 24ft
ALI/ETL Certified: Yes
Colors Available: Red, Blue, Black
Includes:
2 x 7.5K Jacks
2 x Stainless Turntables
1 x Air Line Kit
2 x Work Steps (Black)
