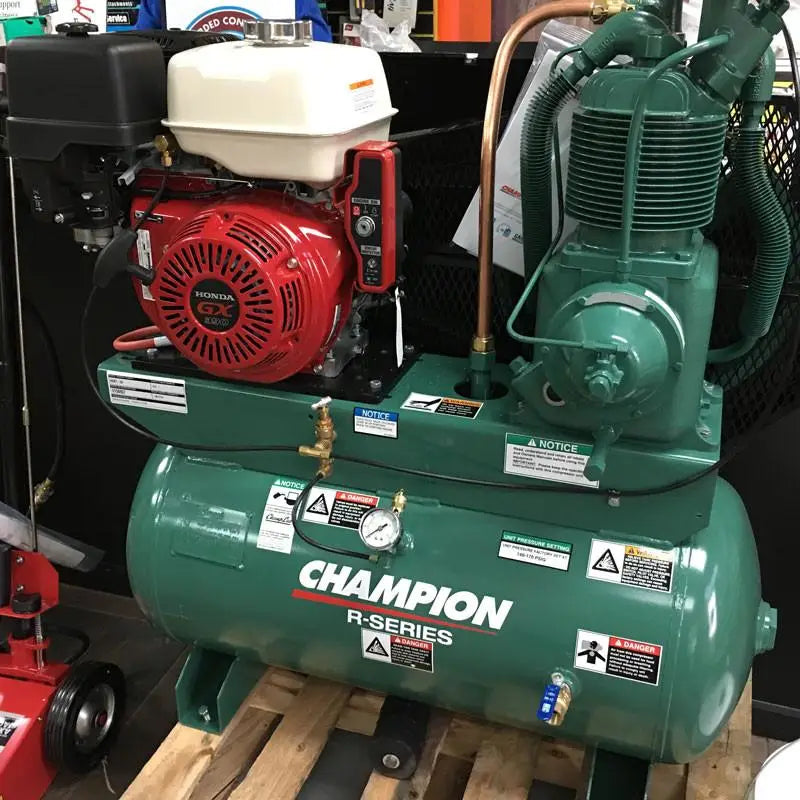

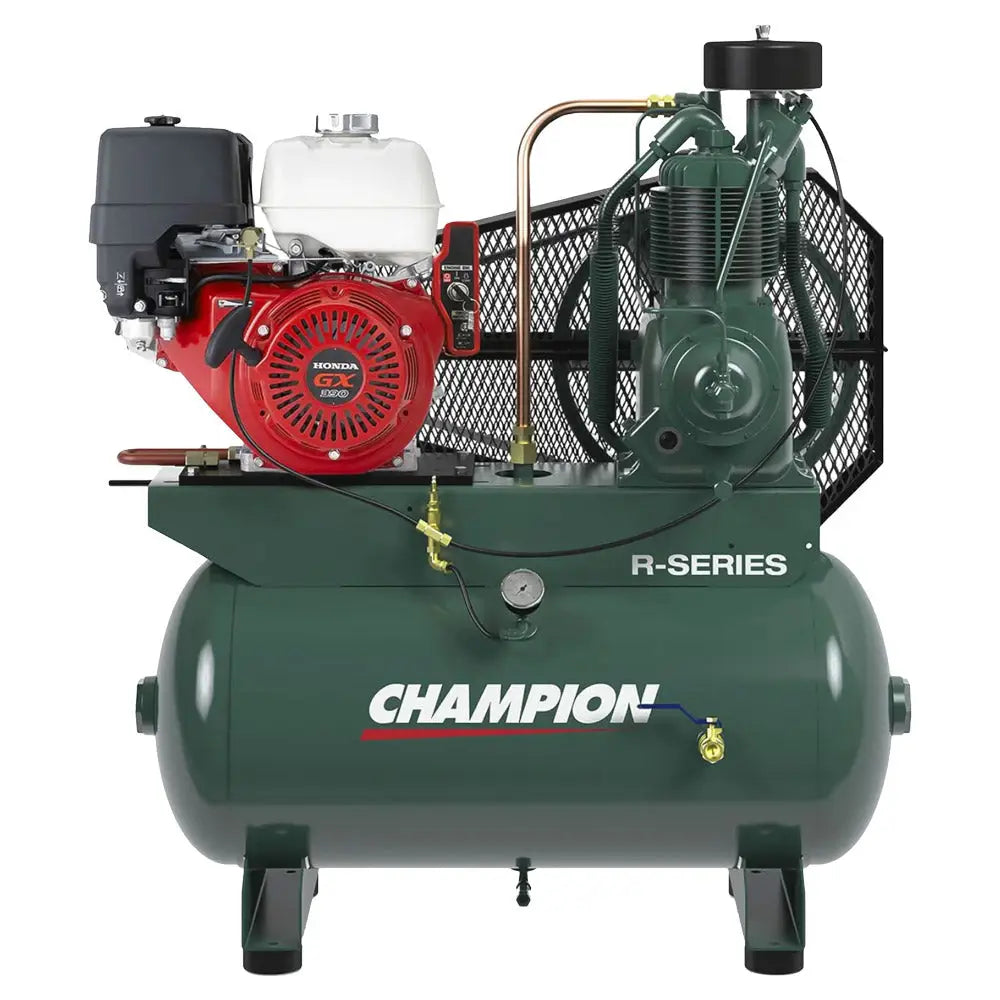

Champion R-Series R2-30A, 13 HP Splash lubricated Engine / Gas Driven Simplex Horizontal Air Compressor. R-Series Compressors are loaded with features designed for high performance and tremendous value.
Features:
- All engines come standard with an electric key start switch
- R Series compressor pump
- All pumps come standard with head unloaders for constant load/no-load operation.
- ASME coded receiver / EXCEPT Base Mount and Low Profile tank models
- Intake Filter / Silencer
- Enclosed Belt Guard
- Vibration Isolators
- Tank-mounted units have a pilot valve with a toggle for loadless starting wi.
Specs:
Model Number: HGR7-6H
Configuration: Simplex
Tank Configuration: Horiz
Tank Size: Gallons (liters): 60 / 227
Est. Weight: Lbs. (kg): 585 / 265
California Code: No
Pump Model: R15
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 23.2 / 39.4
Engine HP: 13
Engine Model: Honda GX390
Vibration Isolators: Std
