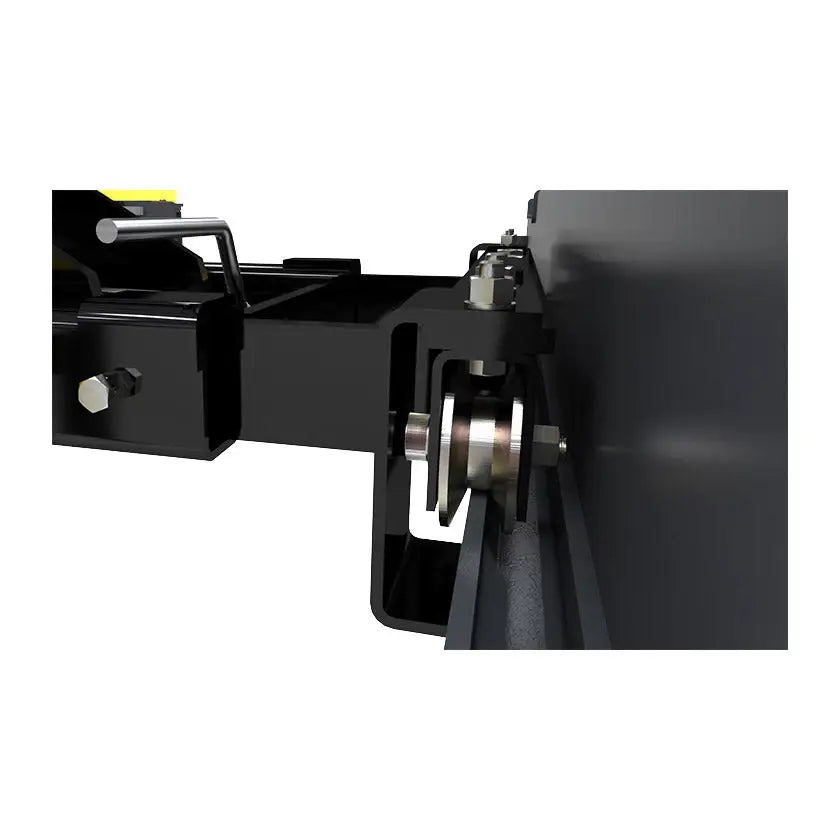

Lift 4,500 lbs. BendPak RJ45W rolling bridge jack is designed to hold up to 4,500 lbs. and features easy-to-roll wheels that make sliding simple between the four-post lift runways. Use this 4-post bridge jack with your BendPak HD-9 series four-post car lift for increased versatility and productivity.
Note: To confirm compatibility, please call with the full model and serial number.
Features:
- 4,500-lb. lifting capacity
- Works with HD-7 series, HD-9 series, and GP-9 series
- Easy-roll wheels
- Rubber contact pads
- Stackable adapters
- High-pressure hydraulic power unit
Specs:
Lifting Capacity: 4,500 lbs. (2,041 kg)
Suitable Lift Model(s): HD-7 Series, HD-9 Series, GP-9 Series
Min. Drive-Over Height*
Pad Only: 4.5in (114 mm)
Pad + 2.75in Adapter: 7.25in (184 mm)
Pad + 5.5in Adapter: 10in (254 mm)
Max. Lifting Height*
Pad Only: 15.5in (394 mm)
Pad + 2.75in Adapter: 18.25in (464 mm)
Pad + 5.5in Adapter: 21in (533 mm)
Reach
Support Base Width: 35.5in (902 mm) - 46.5in (1,181 mm)
Max. Arm Reach: 57in (1,448 mm)
Min. Arm Reach: 42in (1,067 mm)
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 2,490 PSI
Power Requirement: None
Shipping Weight: 380 lbs. (172 kg)
Shipping Dimensions: 41.25in x 25in x 13in (1,048 mm x 635 mm x 330 mm)
