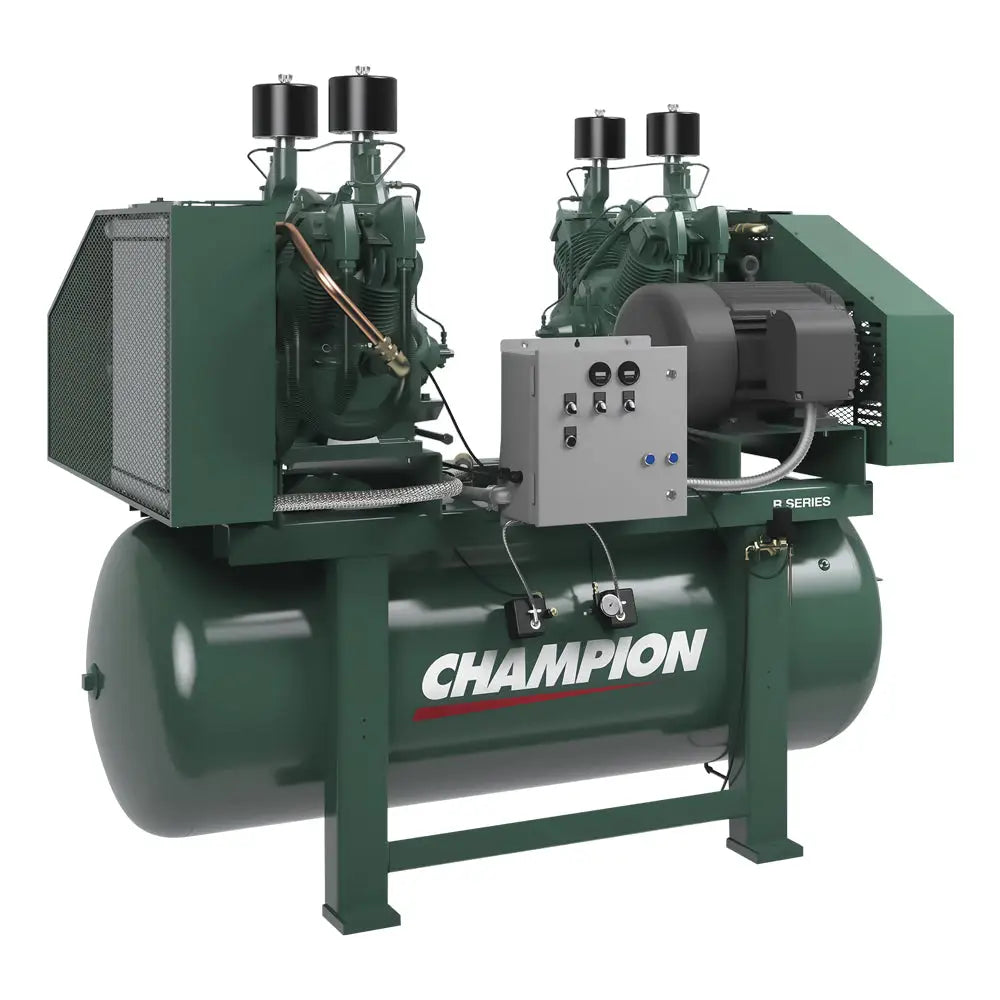

Introducing the Champion HR20D-24 R-Series Duplex horizontal air compressor with 20HP and 240 gallons tank. This compressor boasts easy access and efficient operation with its R-Series compressor pump and head unloaders. Enjoy a quiet, clean workspace with its intake filter/silencer and vibration isolators. Safety is paramount with its enclosed belt guard and loadless starting feature. Plus, it comes with an electric key start switch and control voltage transformer. ASME-coded receivers and California code compliant, this compressor is a high-performance, durable choice for your workspace.
Features:
- 20 horsepower and 240 gallons tank
- Two R70 pumps for high-performance and durability
- Mounted NEMA 1 Control Panel for easy access
- Electric key start switch for added convenience
- Head unloaders included in R70 pumps for efficient operation
- Two intake filter/silencers for reduced noise and a clean working environment
- 2 x enclosed belt guards for added safety and protection
- Vibration isolators for noise reduction and prevention of compressor damage
- Loadless starting without bleeding off the receiver
- Control voltage transformer included
- Duplex units are start/stop control with alternation
- ASME coded receiver
- 2 x 1800 RPM Motors
- California Code Compliant Receivers
Specs:
Product Configuration: Duplex
Tank Configuration: Horiz
Pump Model: R70
Pump RPM @ 175 PSI: 664
Tank Size: Gallons/(liters): 240/908
ACFM @ 80 PSIG/(m3/hr @ 5.5 BAR): 177/300.7
ACFM @ 125 PSIG/(m3/hr @ 8.6 BAR): 169.8/288.5
ACFM @ 175 PSIG/(m3/hr @ 12 BAR): 155.6/264.4
Est. Ship Weight: Lbs./(kg): 2845/1290
Model Number: HR20D-24
Application:
Automotive repair shops
Industrial manufacturing facilities
Woodworking shops
Construction sites
Paint shops
Metalworking shops
Tire shops
Large-scale farming operations
Mining sites
Oil and gas facilities
