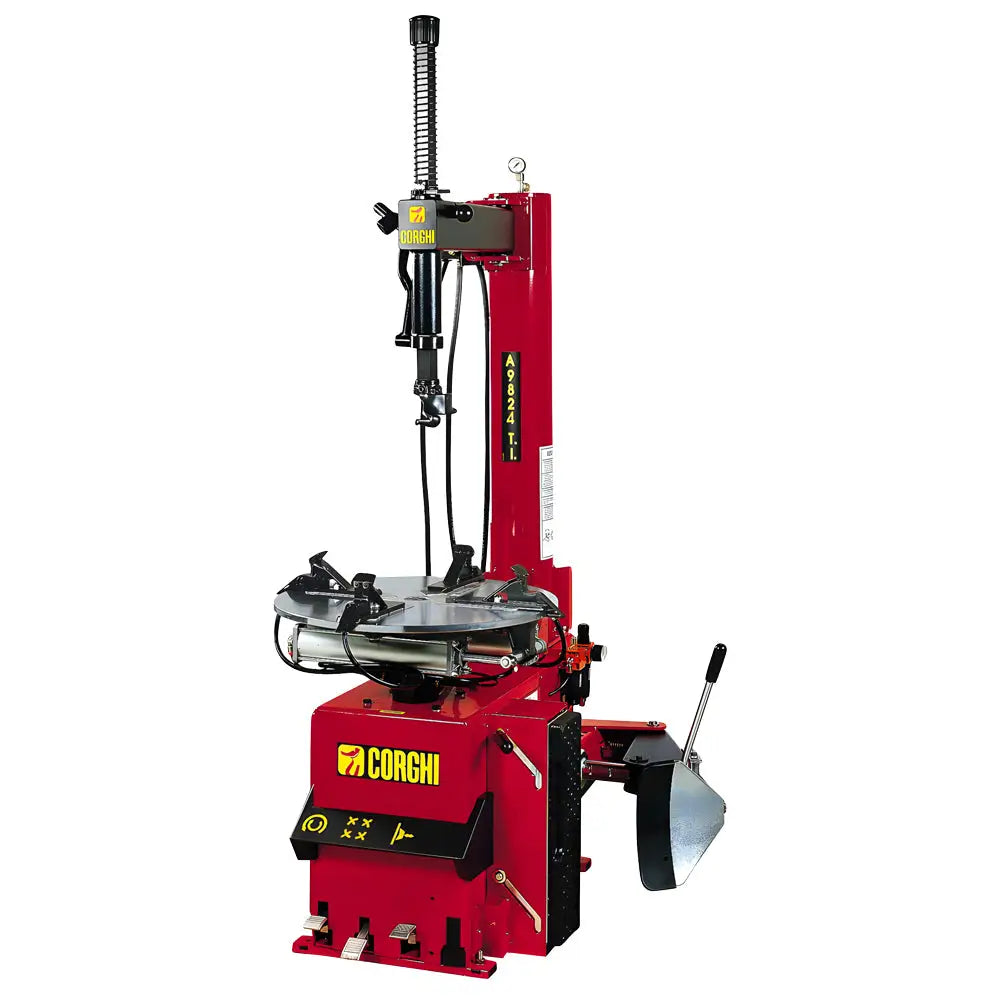

The Corghi A9824TI electric model is a reliable and efficient tire changer, equipped with unique features such as a built-in table inflator with jets, a non-touch mount/demount head, and a powerful action bead-breaker blade. It has a heavy-duty turntable, rebuildable stainless steel cylinders, and a bead-pressing lever, making it safe, fast, profitable, and affordable. An air motor option is also available.
Features:
- Built-in table inflator with jets in the jaws.
- The unique mount/demount head does not touch the rim during operation.
- The locking handle locks the head away from the rim.
- Powerful action bead-breaker blade follows bead to inside rim contour.
- The heavy-duty turntable rotates in either direction.
- Rebuildable stainless steel cylinders.
- Heavy-duty stainless steel turntable.
- Safe, fast, profitable, and affordable.
- Bead-pressing lever.
- Upper arm assembly swings out-of-way.
- Also available with an air motor.
Specs:
Ext. Rim Size: 10 in -24 in
Optional w/Adapter: 8 in -28 in
Int. Rim Size: 13 in -26 in
Voltage: 110V 1 Ph. or Air
Rim Width: 3.5 in -14 in
Max. Tire Diameter: 47 in
Air Pressure: 150 psi
Bead Breaker Power @ Shoe: 3500 lbs
Torque: 737 ft/lbs 1
Ref No.:
A9824TI
0-11101764/00
Includes:
Lube Bucket
Lube Brush
Tire Lever
Tire Lever Covers
Set of Jaw Protectors
M/D Head Bottom Inserts
Set of Inserts
Air Tank Gauge Assembly
B/B Blade Protector on Machine
Bead Pressing Lever on Machine
Optional
Bead Press Tool (BPT)
Pneumatic Helper-Arm (PU1500)
Wheel Lift (WL60)
4" Jaw Extention
Motorcycle Jaw Adapter
