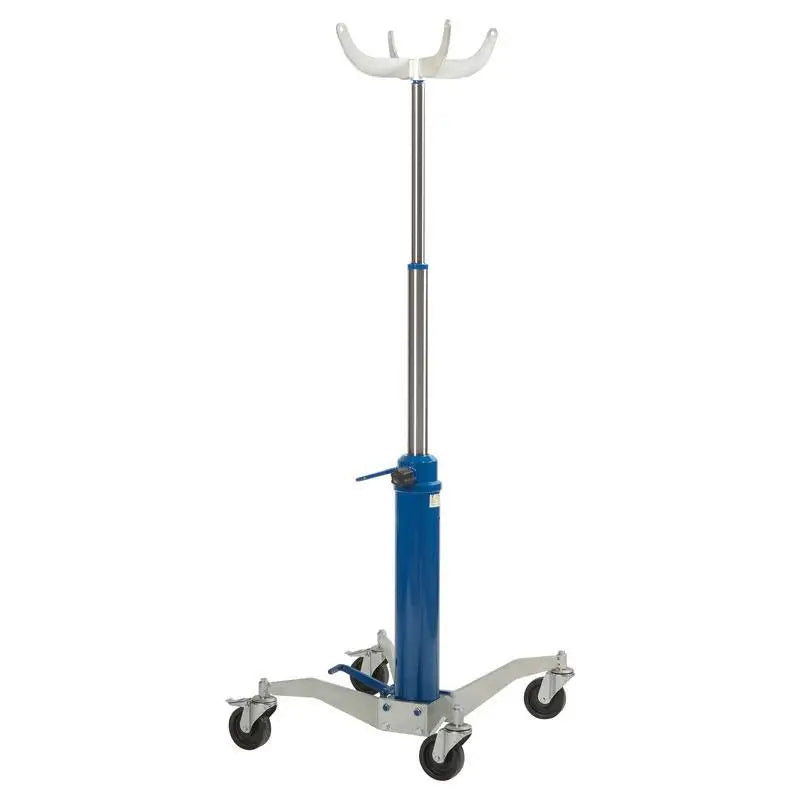

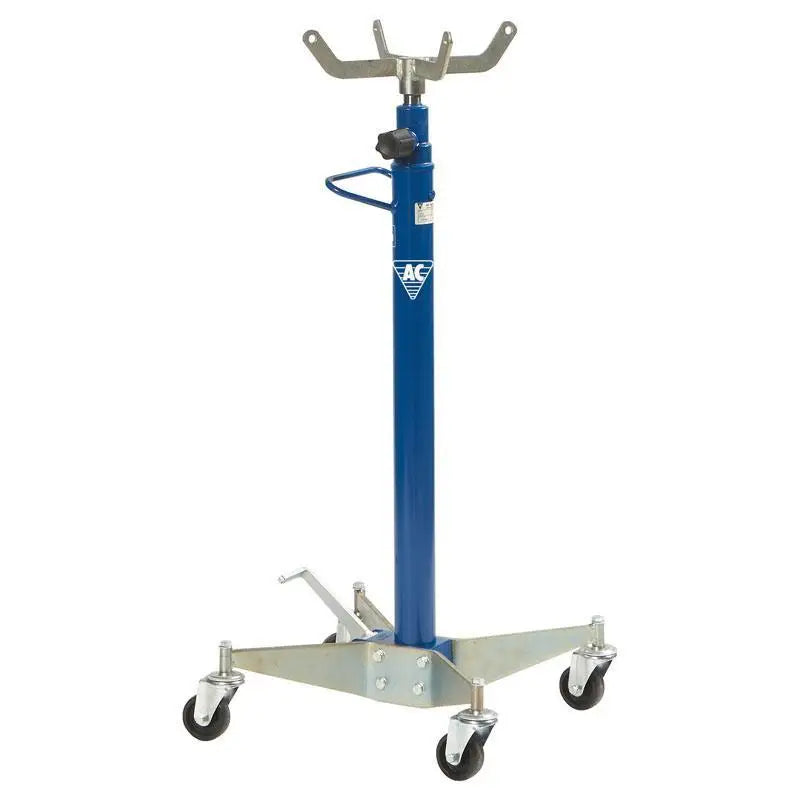

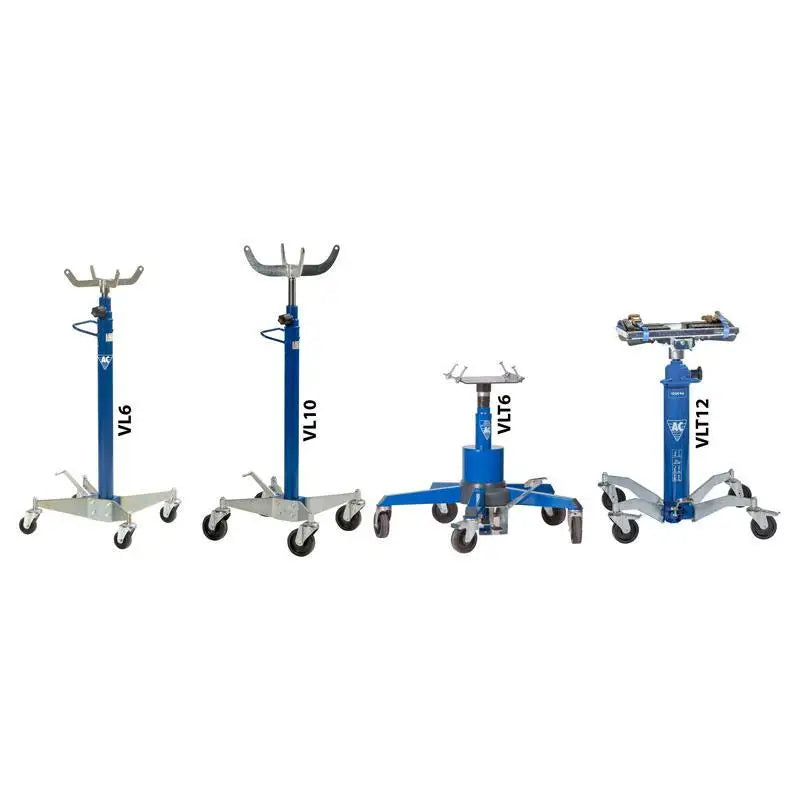

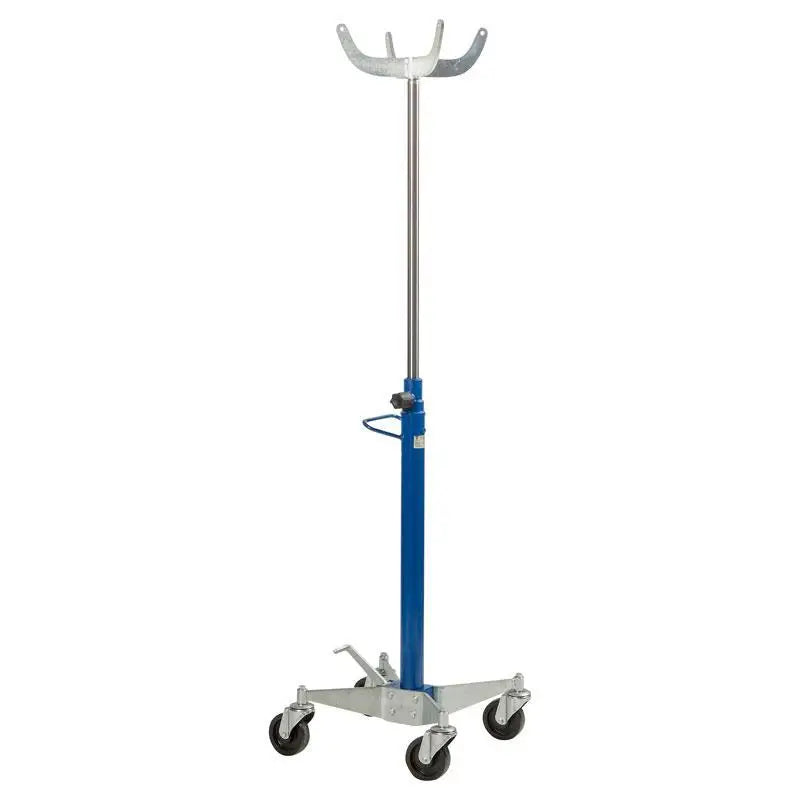

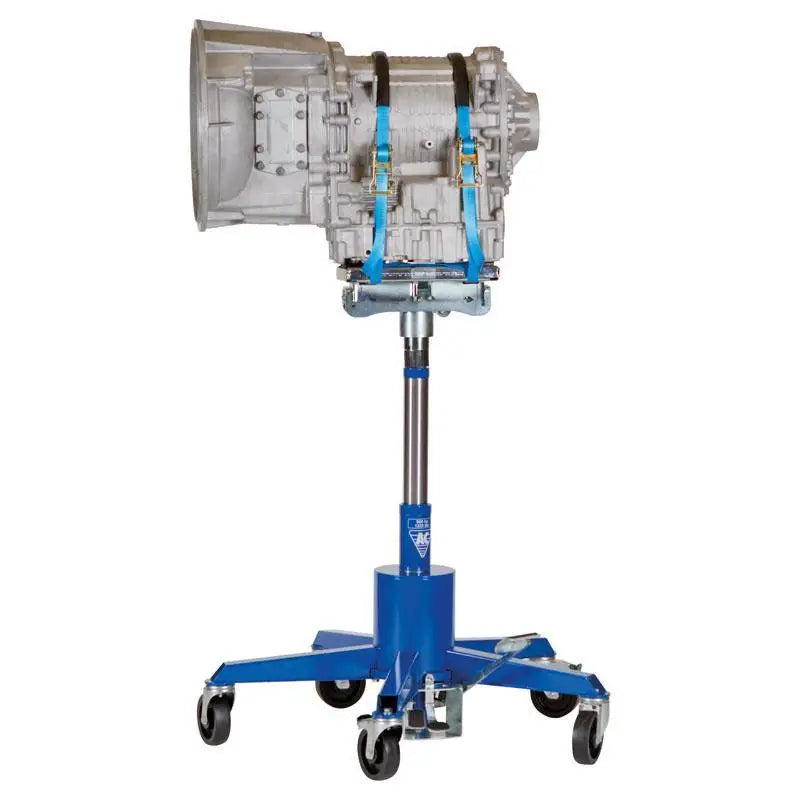

AC Hydraulic Transmission Jack is pedal operated, allowing mechanics get more work done at a faster pace. Designed with optimum safety in mind; feature such as hand operated dead man's release and/or a built-in safety overload valve. Model VL6, VL10, and VLT12 are manufactured with a galvanized support saddle and base frame.
Features:
- Warranty - 10 Year Limited / 3 Years Unlimited.
- Pedal operated pump leaving both hands free for working
- Precise adjustment for positioning of the transmission
- Hand operated dead man's release for optimum safety whilst lowering
- Galvanised support saddle and base frame
- Built-in safety overload valve
- Sturdy swivel casters for optimum stability and maneuverability
- Hard chromium plated piston rod and pump piston for long life.
AC-VL6
Capacity: 0.65 Ton
Stroke: -
Min. Height: 44.49in
Max Height: 77.36in
Air Supply: -
Weight: 73 lbs
Width: 20.87in
AC-VL10
Capacity: 1.1 Ton
Stroke: -
Min. Height: 46.06in
Max Height: 78.74in
Air Supply: -
Weight: 88 lbs
Width: 21.65in

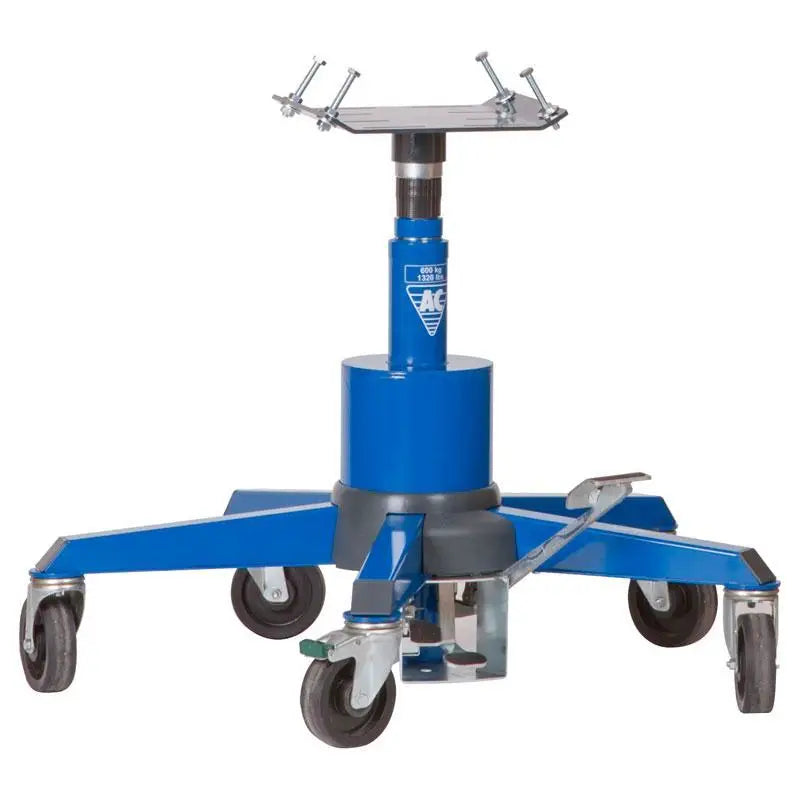

AC-VLT6
Capacity: 0.65 Ton
Stroke: 47.05in
Min. Height: 28.35in
Max Height: 75.39in
Air Supply: 8.5-12 bar
Weight: 111 lbs
Width: 37.4in

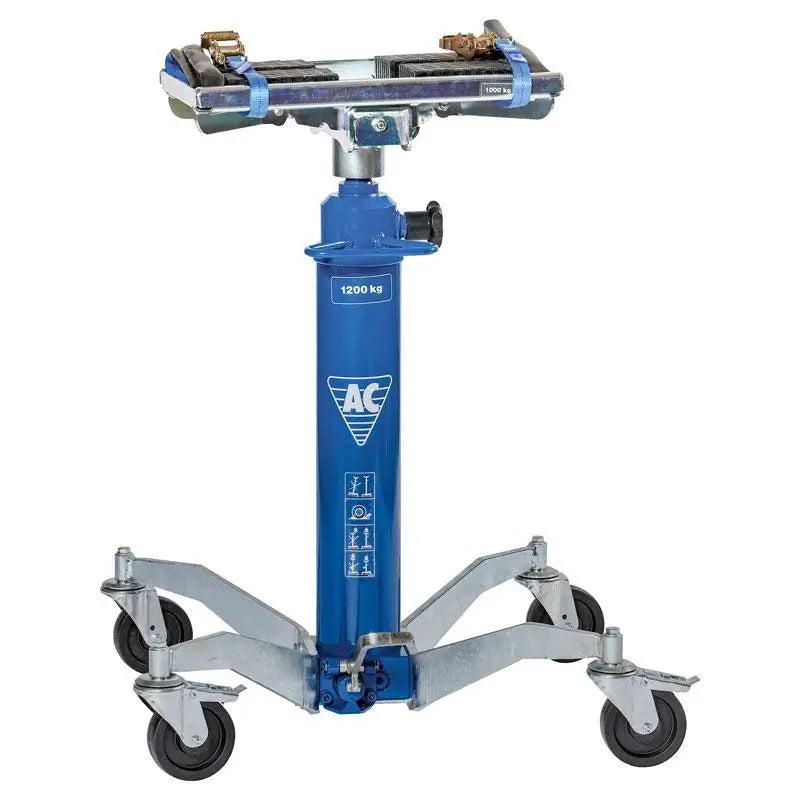

AC-VLT12
Capacity: 1.3 Ton
Stroke: -
Min. Height: 35.63in
Max Height: 75.59in
Air Supply: -
Weight: 150 lbs
Width: 28.35in
Application:
Mounting of springs
Fuel tanks
Exhaust pipes
Etc...
