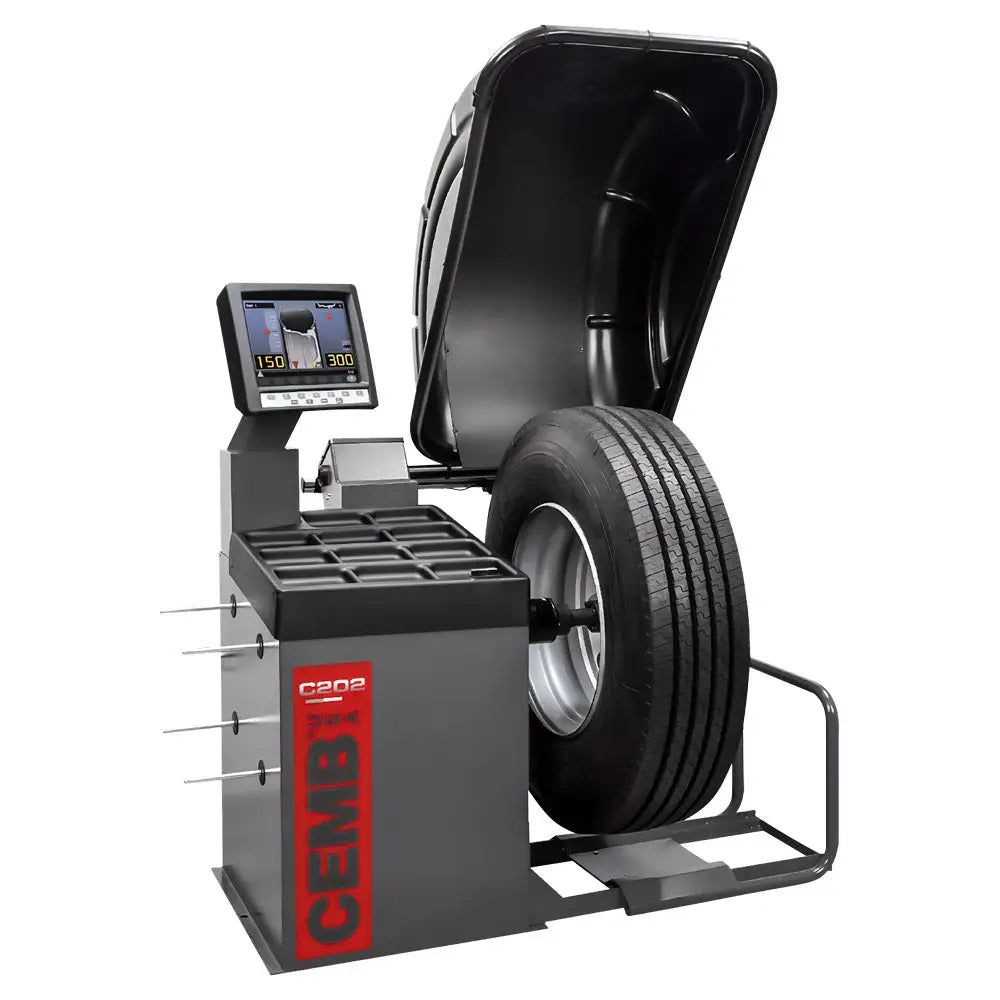

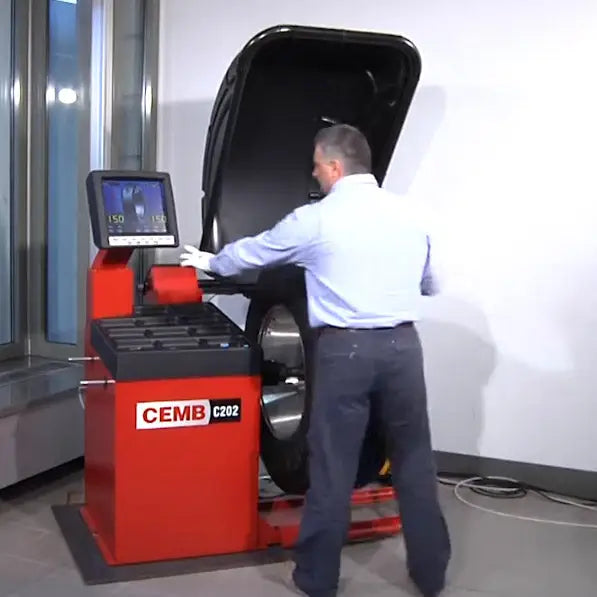

CEMB C202SE is the professional truck wheel balancer with pneumatic wheel locking, saving time and effort for the operator. The machine features pneumatic lift ensuring high precision centering and EMS Sonar for run-out measurement as optional.
Features:
- Industrial based machine for balancing wheels of truck and buses
- Extended shaft diameter (⌀ 65mm)
- Pneumatic locking desined for heavy duty use and the braking system (end spin cycle)
- Developed to handle large and heavy loads.
- Pedal operated ergonomic and fast pneumatic lift guarantees an optimal centering of wheel on flange.
- EMS Sonar for radial eccentricity measurement (Run-Out)
Specs:
Three-phase power supply: 115 / 230 V 50 / 60 Hz
Max. absorbed power: 0,8 kW
Balancing speed: 70 rpm
Cycle time with 150 kg wheel (22.5in): < 20 s.
Balancing accuracy: 10 gr
Rim diameter: 10in ÷ 28in or 265 ÷ 715 mm
Rim width: 1,5in ÷ 20in or 40 ÷ 510 mm
Max. wheel diameter: 1300 mm
Max. wheel weight: 250 Kg
Gross weight: 350 Kg
Packing dimensions: 163x123x176 h cm
Max. wheel weight: 250 Kg
Standard:
C202SE Clamping spacer (L=116)
CONE I - Centering cone on rim hole (Ø 76-106 mm)
CONE II - Centering cone on rim hole (Ø 104-134 mm)
CONE III - Centering cone on rim hole (Ø 132-178 mm)
G/175 Disc spacer - To be used with Cone III cod. 940010101
