If time is of the essence and you're seeking the latest technology in tire balancing, look no further than the Cemb 2-Hit Tire Dealer Balancer. This top-of-the-line balancer revolutionizes the wheel balancing process with its blend of speed, user-friendliness, durability, and comfort. Designed with tire technicians and professionals in mind, it boasts features such as One Plane Balancing (OPB), AutoAdaptive™ Mode, EMS Sonar, and Laser Spotter. With its ergonomic design and automatic positioning system, this balancer is a game-changer for any tire shop, making it accessible to all skill levels.
Features:

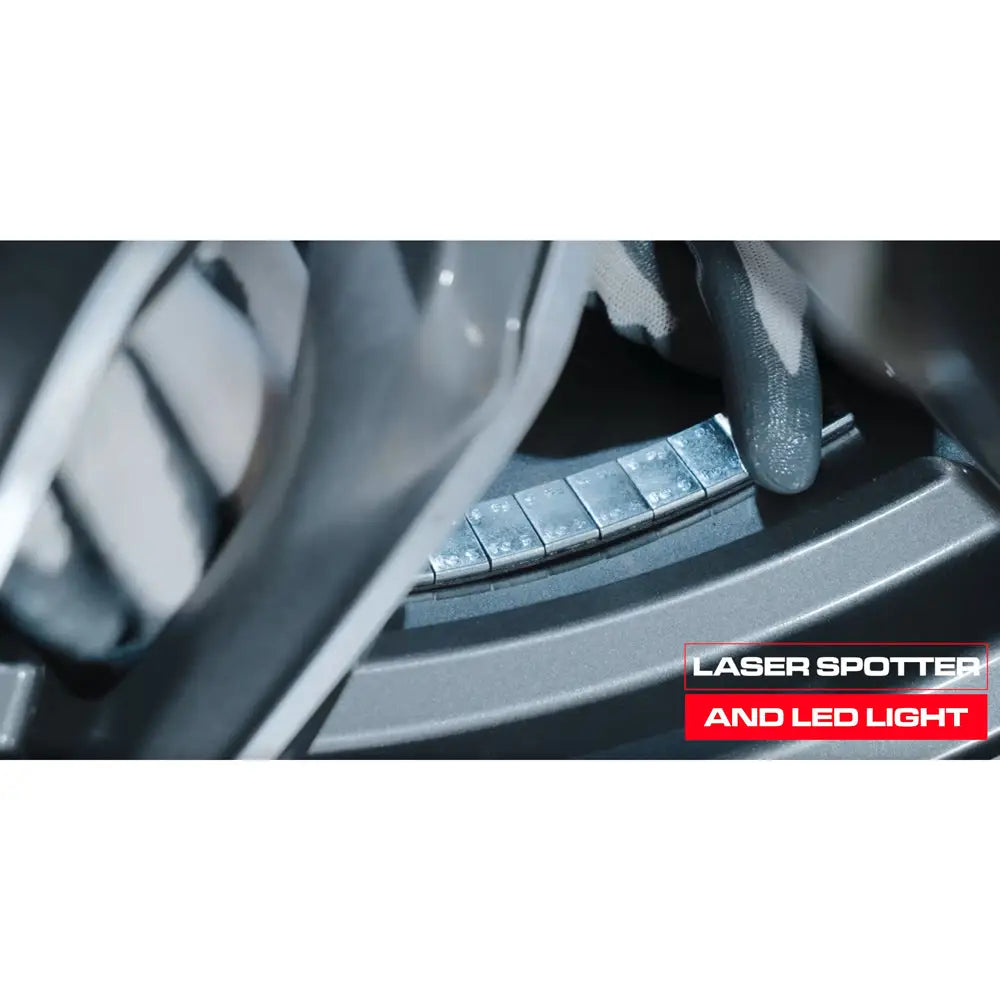

- Laser Spotter: Precisely indicates weight application point with maximum accuracy.

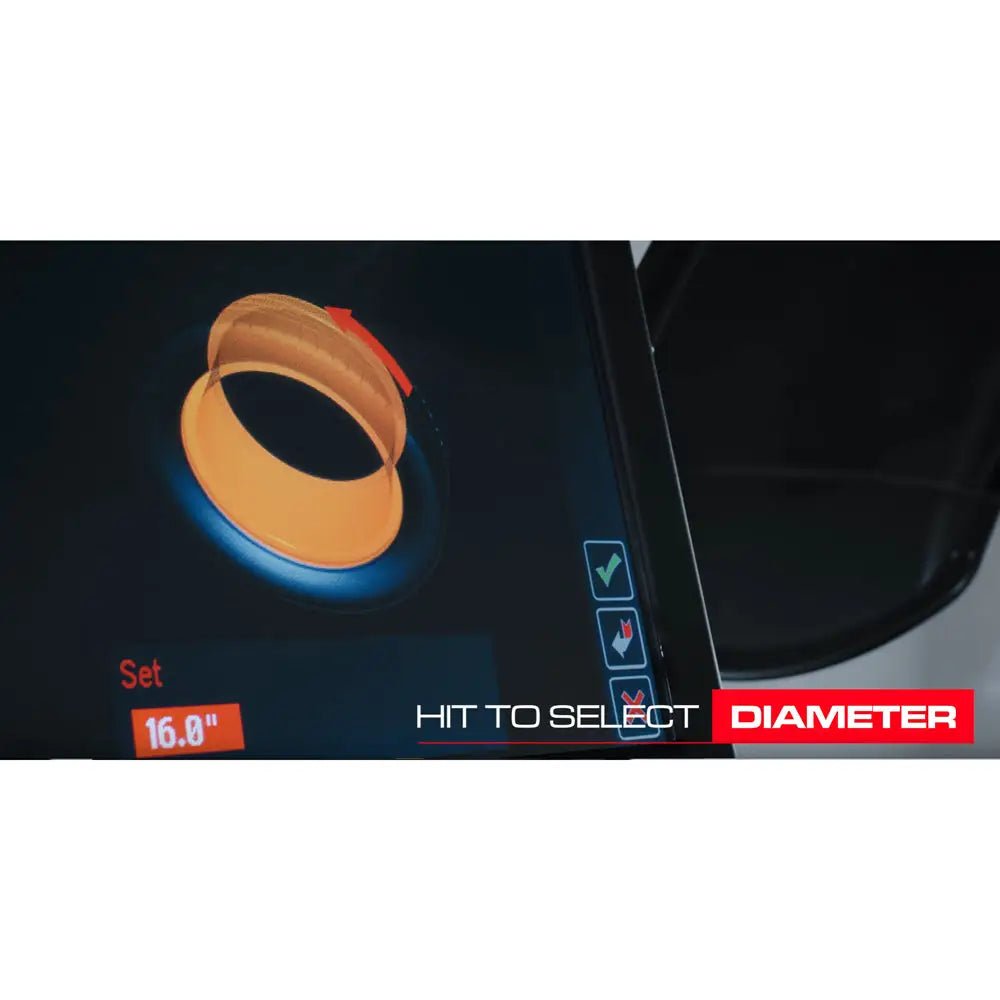

- Laser Matching: Calculates rim diameter for precise adjustments.

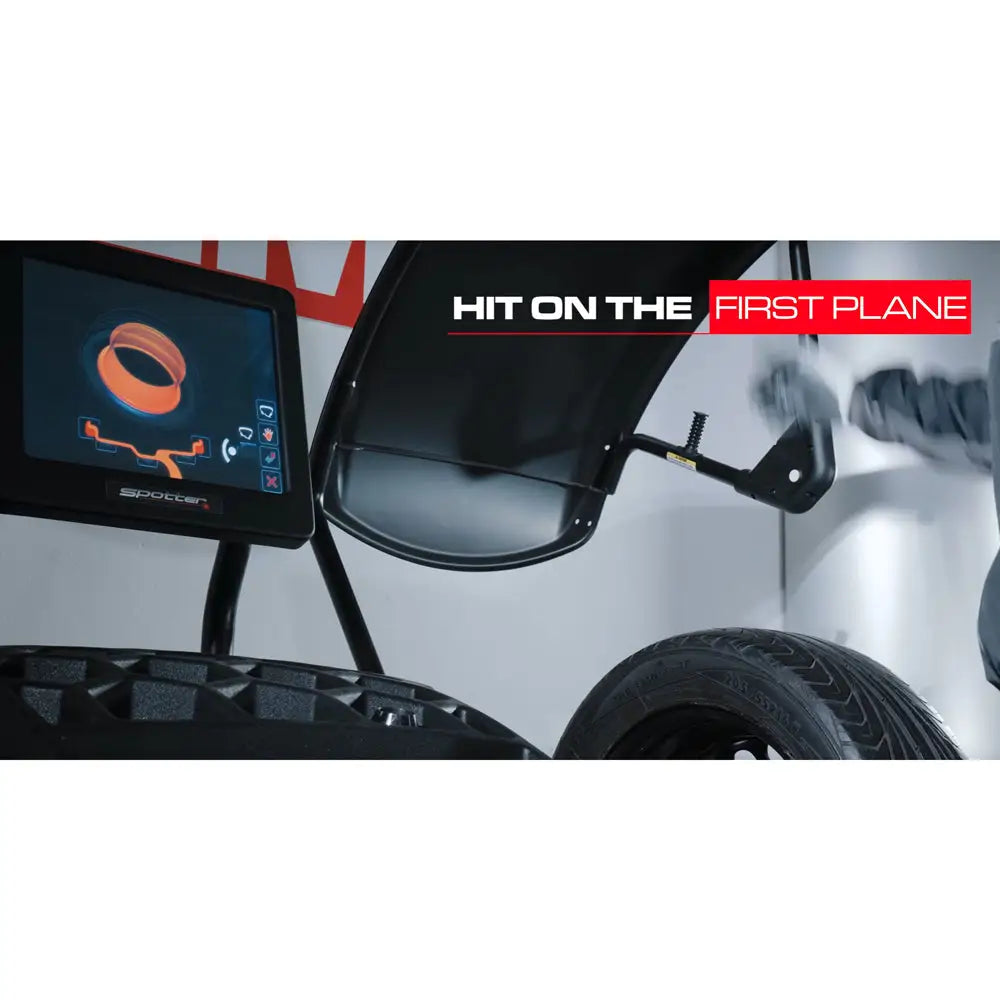

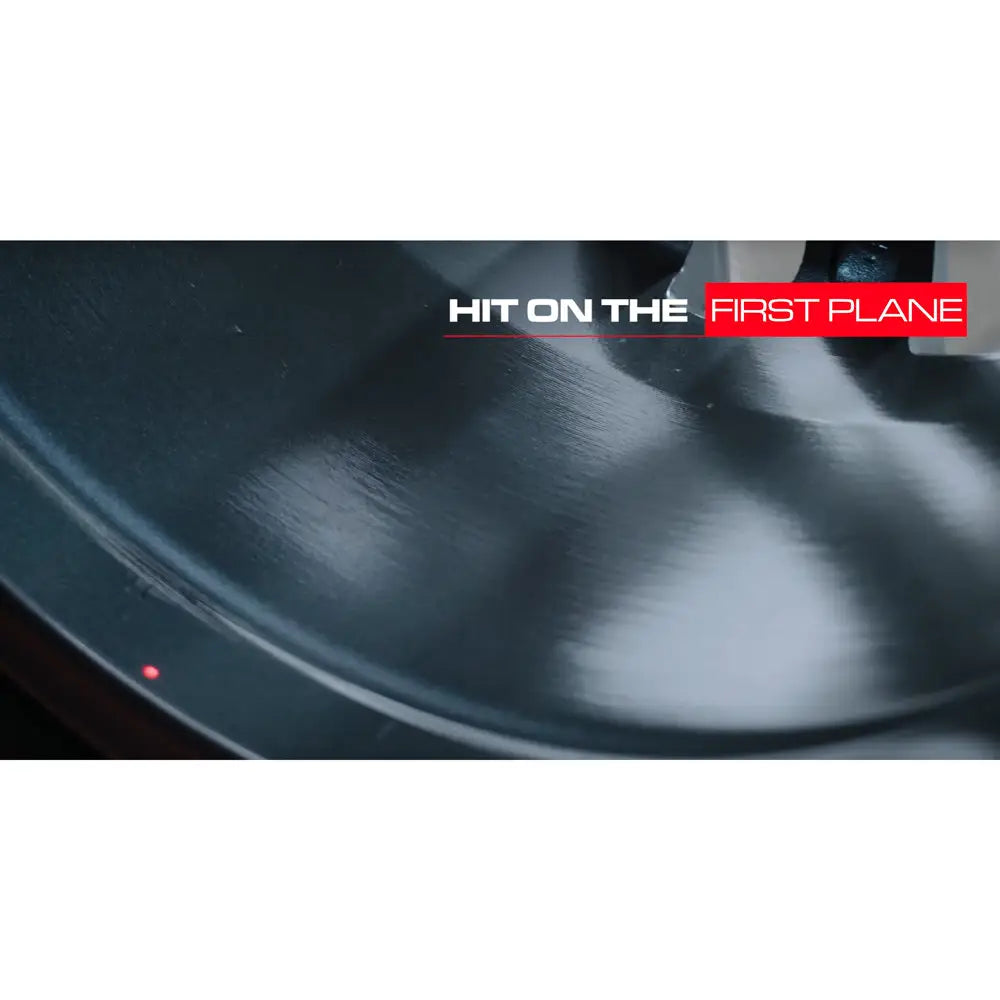

- OPB Balancing: Corrects static and dynamic imbalance with one weight.
- AutoAdaptive Mode: Calculates tolerances with an advanced system.

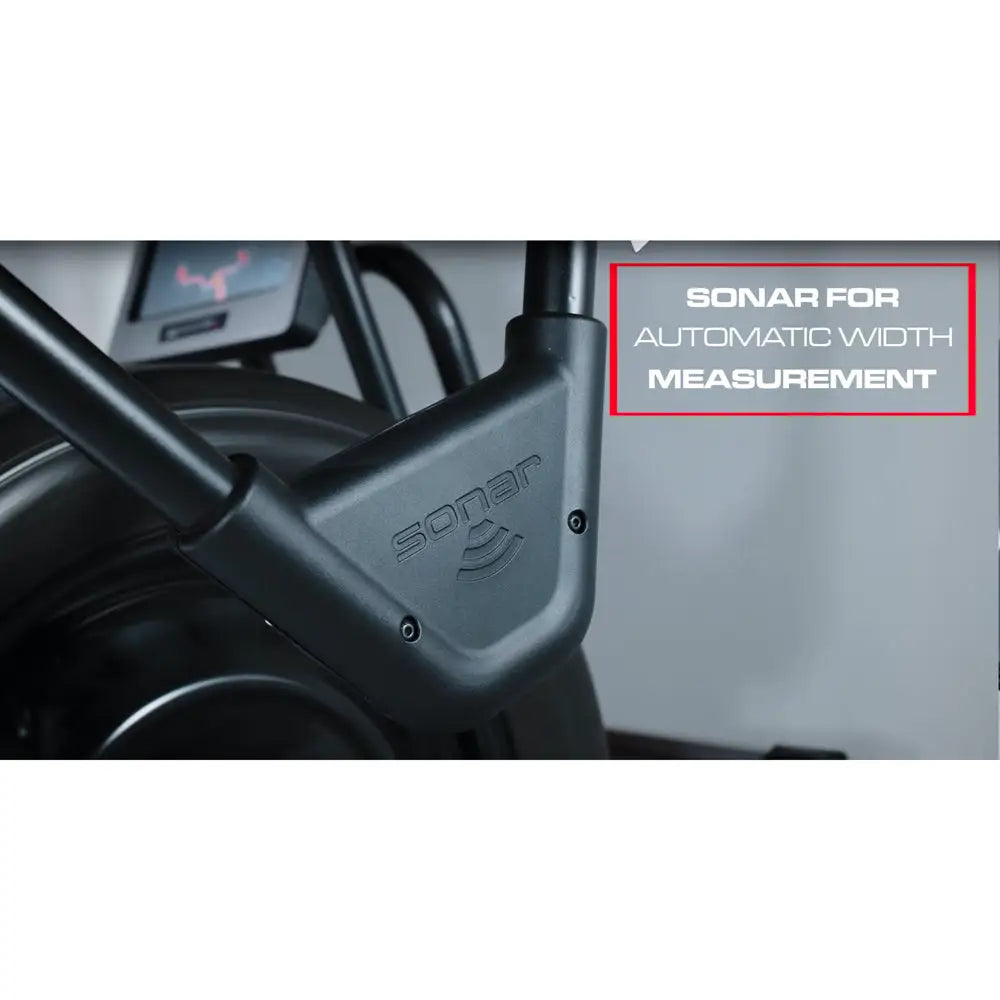

- LA SONAR: Measures wheel width automatically for accuracy.
- ALU-S Mode: Balances adhesive weights with specific indicators.
- LED Light: Illuminates rim space for clear visibility.

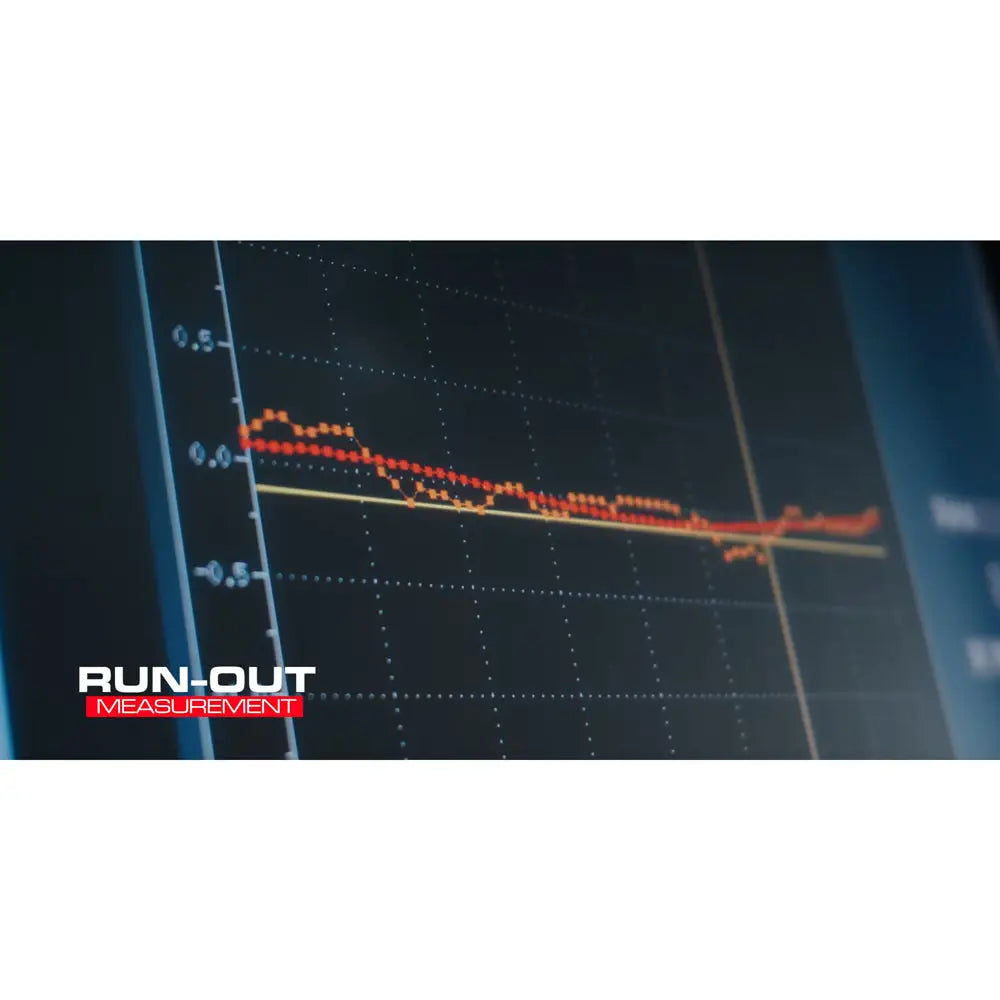

- EMS SONAR: Quick eccentricity measurement with automatic cycle.

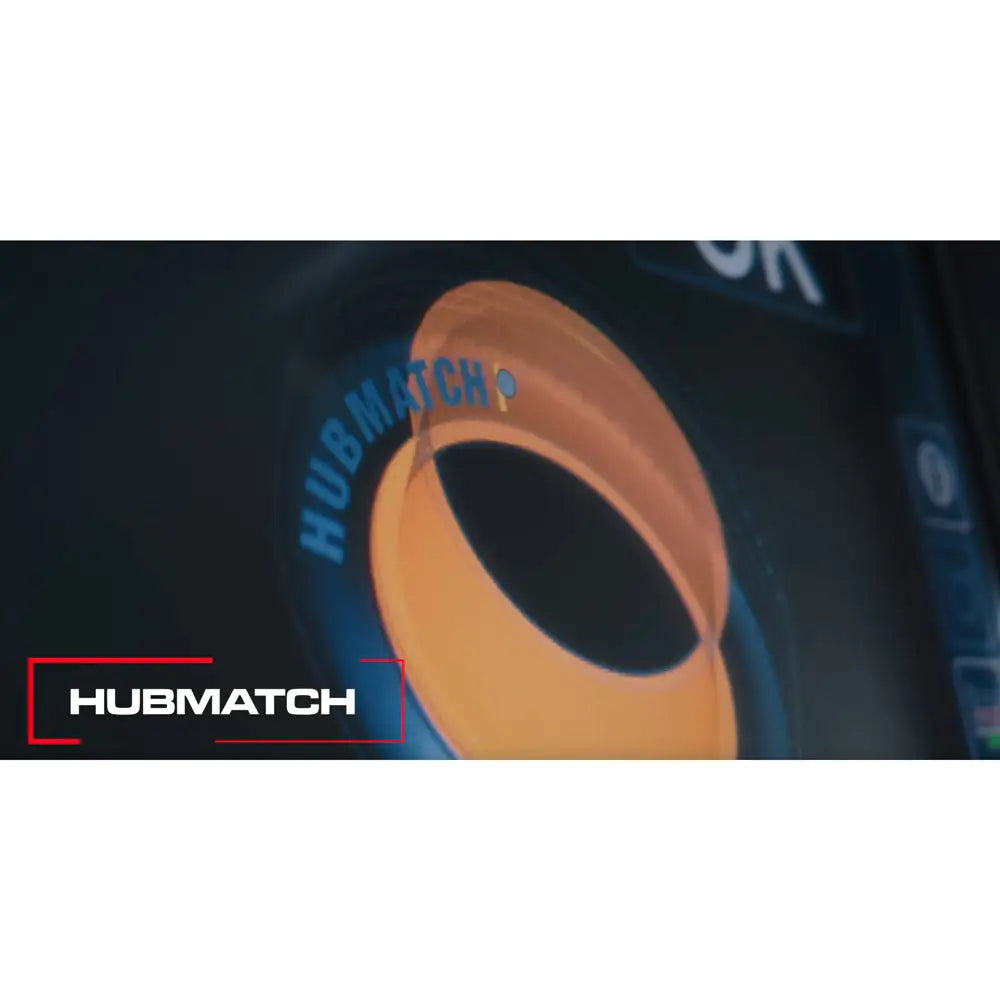

- Hubmatch: Detects maximum eccentricity point for reduced vibrations.
- Tire Set: Optimizes wheel positioning for best ride and minimal vibrations.

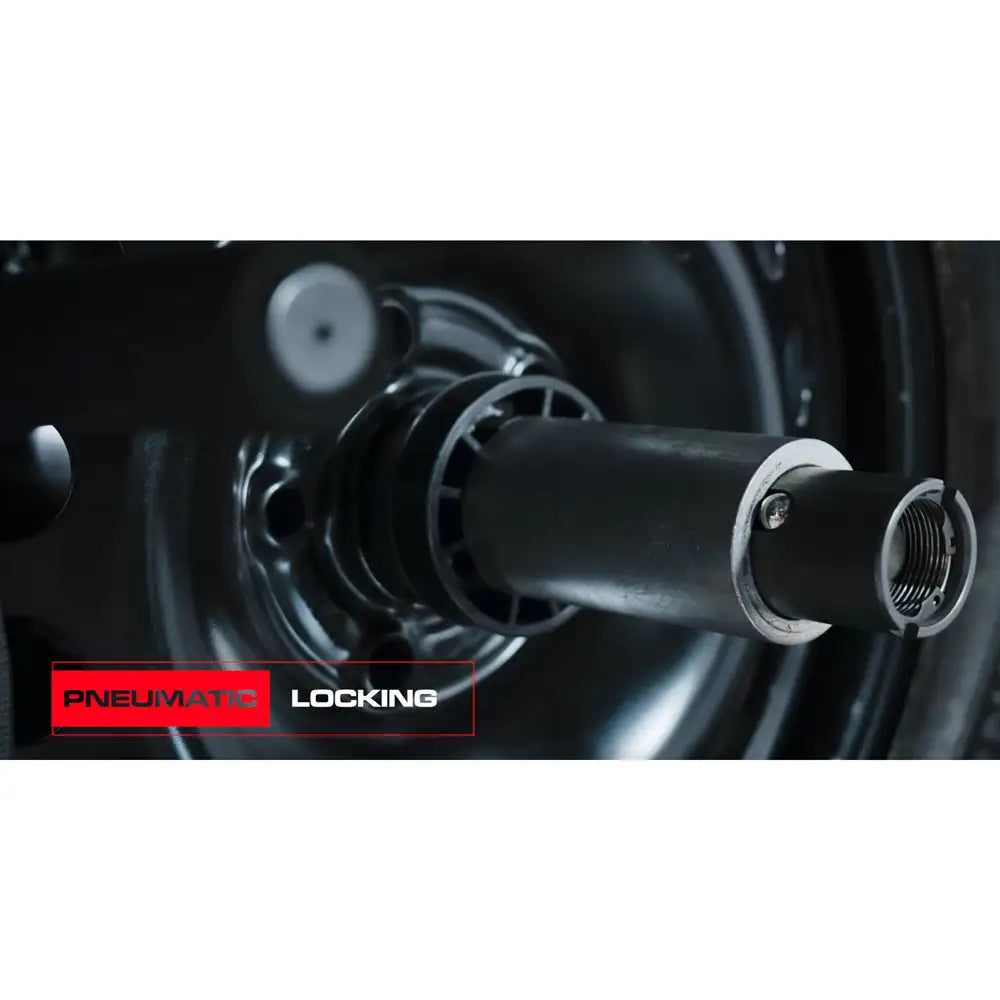

- Pneumatic Wheel Locking: Fast, accurate wheel centering with floor-to-floor reduction.

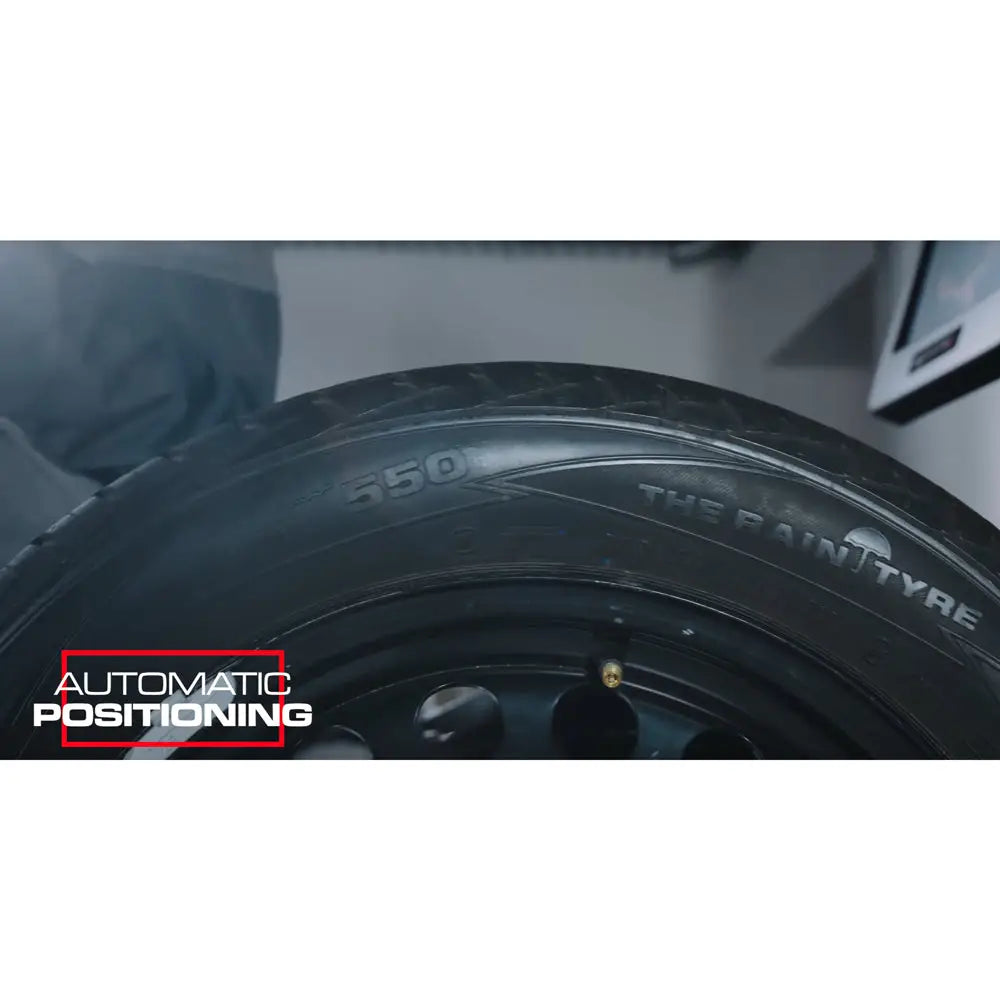

- Automatic Positioning: Locks wheel in weight position automatically for efficiency.
Specs:
Power Supply: 220V, 1ph, Air
Wheel Clamping Type: Pneumatic
Rim
- Max. Diameter: 30in (765 mm)
- Max. Width: 20in (510 mm)
- Width setting range: 1.5in ÷ 20in / 40 ÷ 510 mm
- Diameter setting range : 10in ÷ 30in / 265 ÷ 765 mm
Max. Tire Diameter: 40in (1016 mm)
Max. absorbed power : 0,15 kW
Balancing speed : 100 rpm
Measuring cycle for 15 kg wheel : 4.7 s
Measurement uncertainty / Resolution: 0,5 g
Avarage noise : < 70 dB (A)
Min./Max. compressed air pressure : 7 ÷ 10 kg/cm2 / ~ 0.7 ÷ 1 MPa
Min./Max. compressed air pressure : ~ 7 ÷ 10 bar / ~ 105 ÷ 145 psi
Max. wheel weight : < 165 lbs
Machine weight : 265 lbs
Shipping Weight: 485 lbs. (220 kg)
Ref Name
Laser Wheel Balancer
Application:
Tire shops
Automotive garages
Car dealerships
Fleet management companies
Auto repair shops
Includes:
1 x Pneumatic Looking Kit (41FF52768)
4 x Cones (40FF88351, 40FF43715, 40FF43716, 40FF61043)
1 x Rim Width Gauge
1 x Weight Plier/Hammer
Acc. Bundles:
Pro-Kit Bundle - PROKIT: This kit comes with everything you need to do light truck wheels and lug-centric wheels. With the included adapters, you'll be able to get the job done quickly and easily.
- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174
Pro Plus Kit Bundle - PROPLUS: This kit provides you with the necessary adapters to do light truck and lug-centric wheels while also providing a pneumatic wheel lift to lift heavy wheels. Plus, it comes with a storage rack for adapters.
- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174
- Pneumatic Wheel Lift - 46FL85170
- Accessory Rack - 41FF03151
