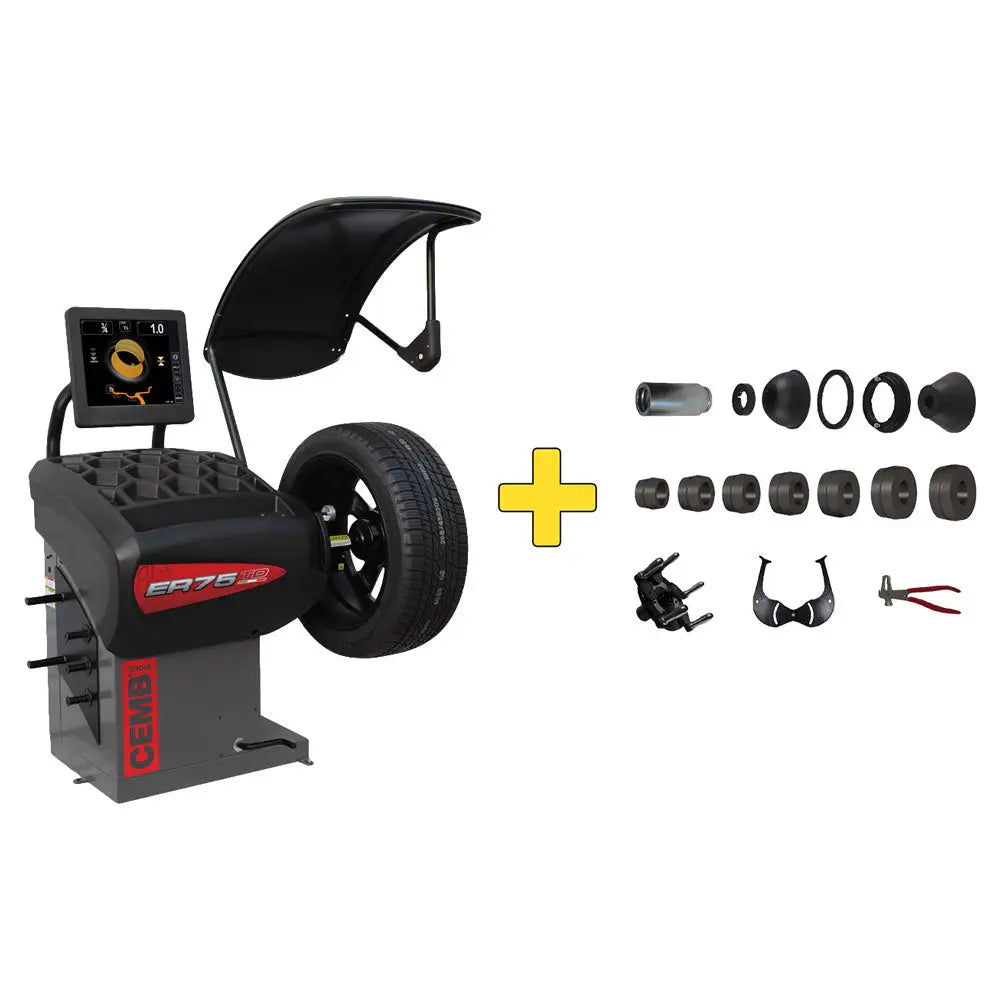

CEMB HubMatch RFV wheel balancer exclusively combines refined off-car balancing capabilities and features with a guided on-car eccentricity* cancellation process. This HubMatch RFV guided process is instantaneous for the operator to perform, significantly reduces floor-floor cycle time, and uses an OEM "best practice" recommendation providing "game-changer" ride quality improvement.
*Note: Eccentricity=RFV=Radial Force Vectoring
Features:
- One-Plane Balancing / OPB- The balancer automatically detects if it is possible to correct both unbalance with only one weight and activates the OPB program.
- AutoAdaptive Mode - detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel.
- HubMatch Balancing - detects the unbalance and the highest point of the wheel / 1st harmonics and displays it on-screen to enable the wheel-mounted wheel on the vehicle.
- The fastest, easiest to use, and best performing RFV balancer at a fraction of the cost of other RFV balancers.
- Measures wheel balance and RFV in 6 seconds.
- 3D Laser Scan
- Side Laser
- EMS Sonar
- ZeroWeight wheel lift / ER75AC Only
- Made in Italy & Assembled in the USA
Specs:
Power Supply MC: 110/220V, 1ph, 50 / 60Hz
Power Supply AC: 110/220V, 1ph + Air, 50 / 60Hz
Balancing Speed: 100 rpm
Maximum Rim Width: 20in
Maximum Rim Diameter: 30in375
Maximum Tire Diameter: 42in
Max Wheel Weight: 165 Lbs.
Machine Weight: 375 Lbs.
Ref No.
ER75TD (New PN)
Acc. Bundles:
Pro-Kit Bundle - PROKIT: This kit comes with everything you need to do light truck wheels and lug-centric wheels. With the included adapters, you'll be able to get the job done quickly and easily.
- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174

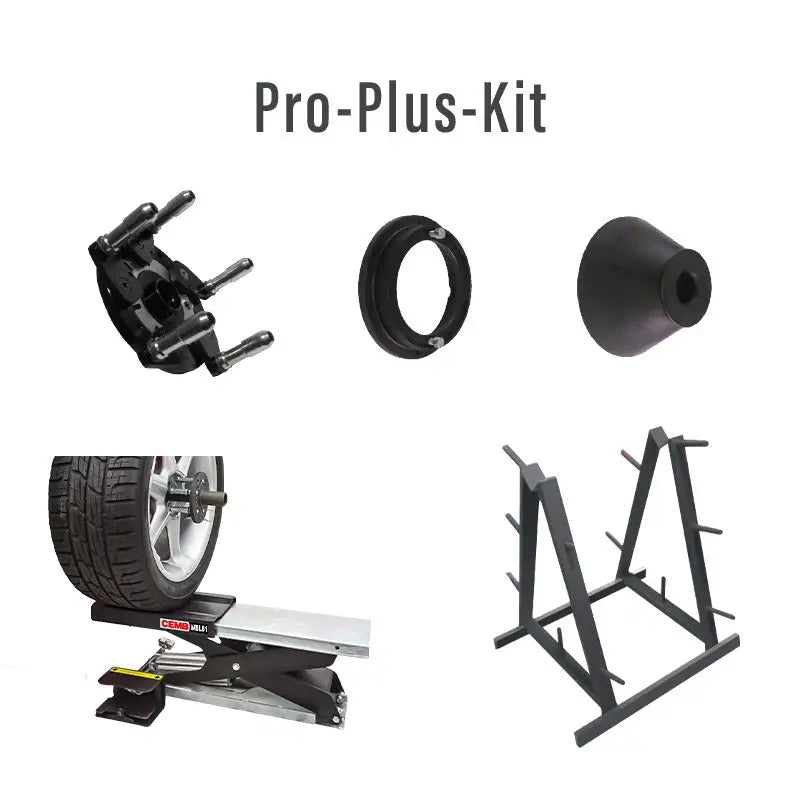

Pro Plus Kit Bundle - PROPLUS: This kit provides you with the necessary adapters to do light truck and lug-centric wheels while also providing a pneumatic wheel lift to lift heavy wheels. Plus, it comes with a storage rack for adapters.
- Pin Plate Adaptor: 41FFA6478 Manual, 41FFA5298 Pneumatic
- 2-Pieces Truck Cone Kit - 41FF86174
- Pneumatic Wheel Lift - 46FL85170
- Accessory Rack - 41FF03151
