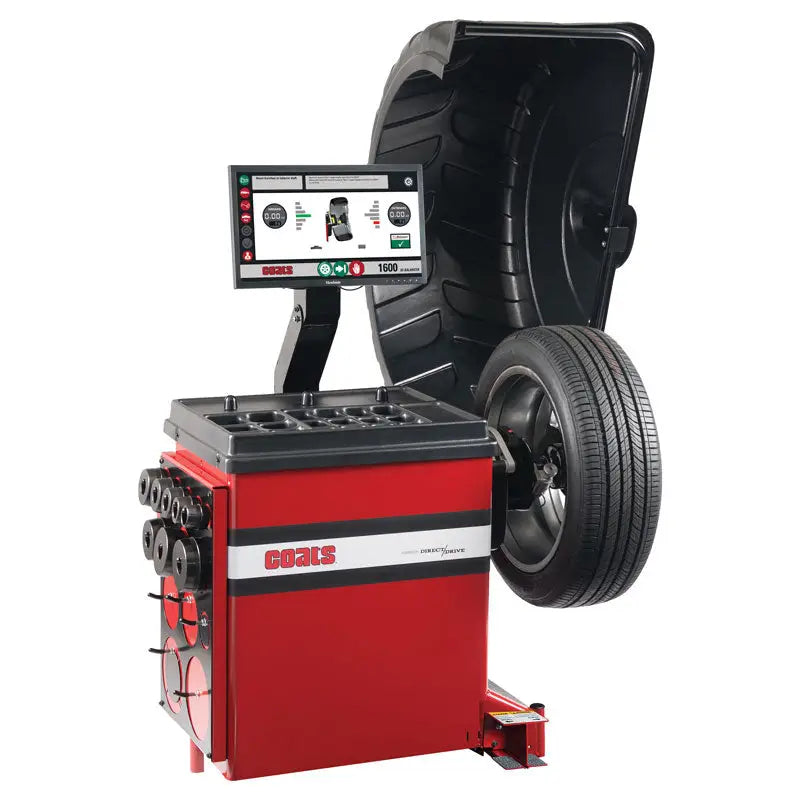

Model 1600 3D Laser-Guided Direct Drive wheel balancer with Pro balance and Speed Thread Technology.
Features:

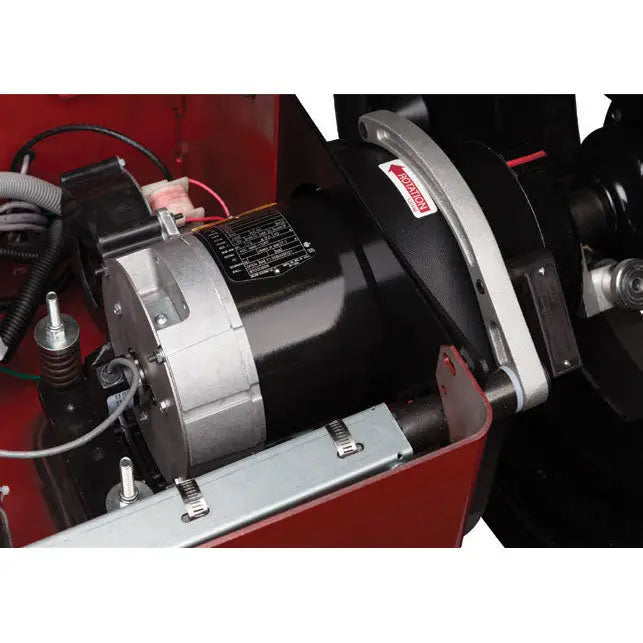

- Powered by Direct Drive: Motor and spindle are combined into a single, pre-balanced assembly that always stays calibrated to zero.

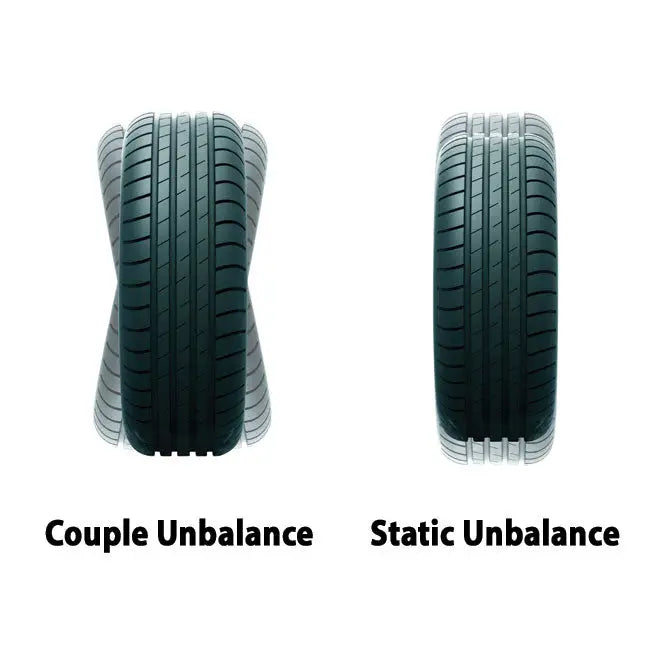

- ProBalance Technology: A unique balancing algorithm and unbalance correction methodology that minimizes both static and couple unbalance
- Touchscreen: The weight location recognition system offers a touch-free operation for ≈85% of wheel balances. The touchscreen system is built to last and can be used while wearing gloves.

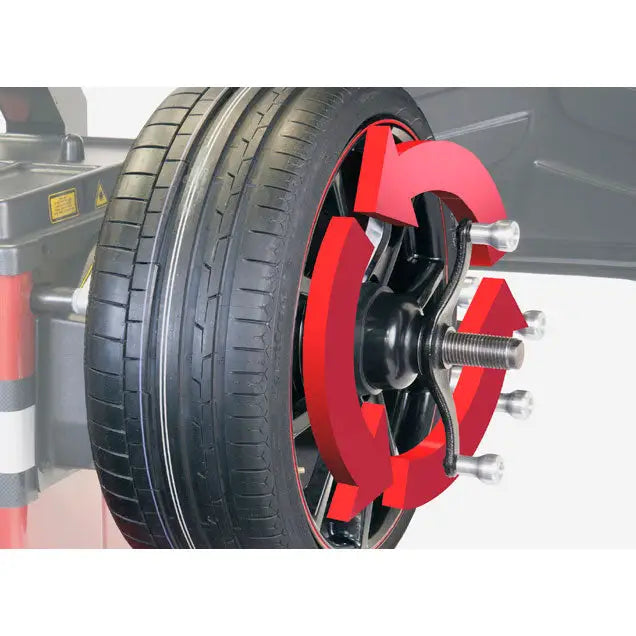

- Stop, Lock & Index: Automatically positions the wheel at the weight placement location and locks the spindle in place for easy, accurate weight application.
- 3-Dimension Automatic Data Entry: 1600 offers automatic data entry of the distance, diameter, and width. This eliminates the chance of technician error and speeds up the balancing process.
- Laser-Guided Operation: Pinpoints the exact weight location, both radially and axially, and eliminates trial and error.
Specs:
Balancing Modes: 8
Wheel Diameter Range: 8in to 30in
Wheel Width Range: 2in - 20in
Maximum Tire Diameter: Up to 44in
Maximum Tire Weight: 160 lbs.
Shaft Diameter: 40 mm
Interface: Touchscreen
Automatic Data Entry: Distance/Diameter/Width
Electrical Requirements: 220v, 1ph or 220v, 3ph
Warranty: 3 Year Parts, 6 Months Labor

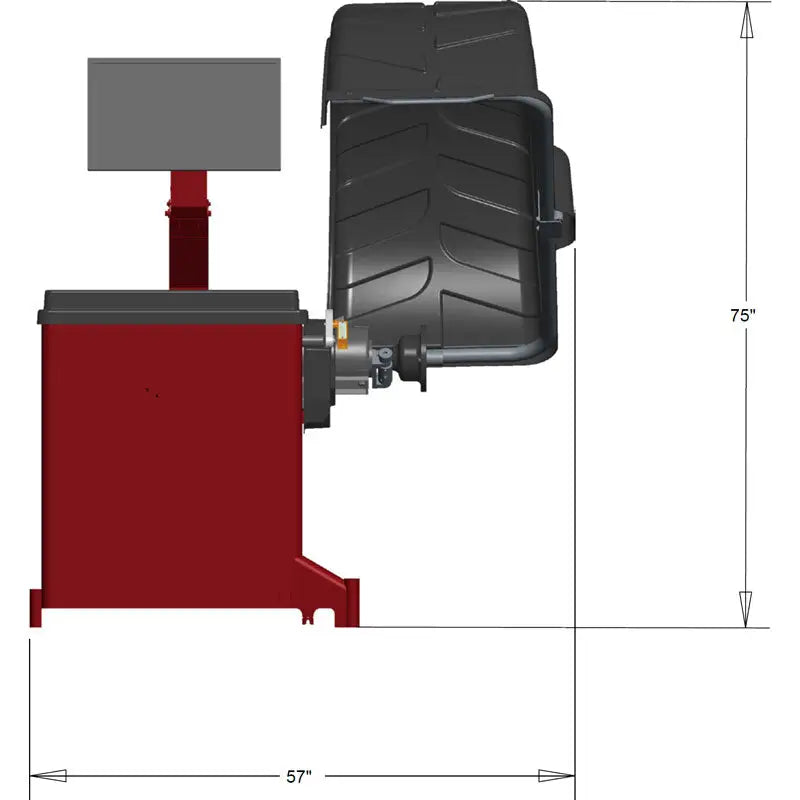

Footprint: 75in H x 57in W x 55in D
Shipping Weight: 650 lbs.
Part Number: 80016003D - 1ph
