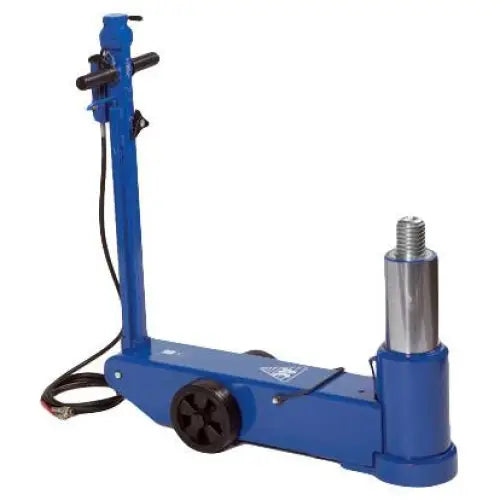

Air hydraulic aircraft jack with extra long stroke
Features:
- Compact and slim design for easy operation and manoeuvrability
- Telescopic handle increases the reach under the aircraft to 90.28 in and offers easy and safe operation
- The jack can be operated by either compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart

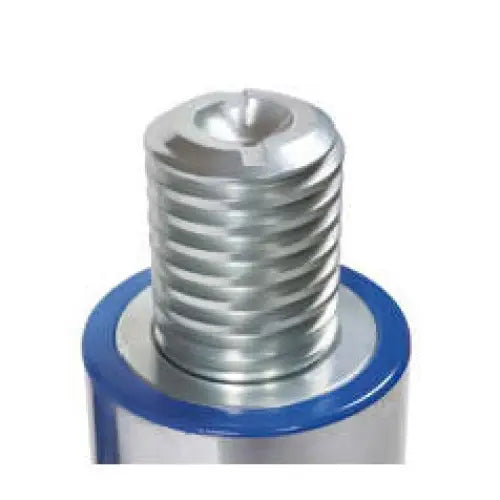

- Fitted with extension screw 3.15 in for optimum use of the stroke
- Rapid ram retraction without load
- Safety features include manual lowering valve, safety overload valve and dead mans release
- Designed and manufactured according to the aircraft standards: EN1915:2001 and EN12312:2005
Specs:
Capacity: 143000 lbs
Min. height: 12.36 in
Max. height: 20.47 in
Frame length: 36.37 in
Handle length: 37.40 - 53.54 in
Width: 7.87 in
Width with wheels: 12.20 in
Air supply: 130 - 174 psi
Air consumption: 350 l/min
Weight: 207 lbs

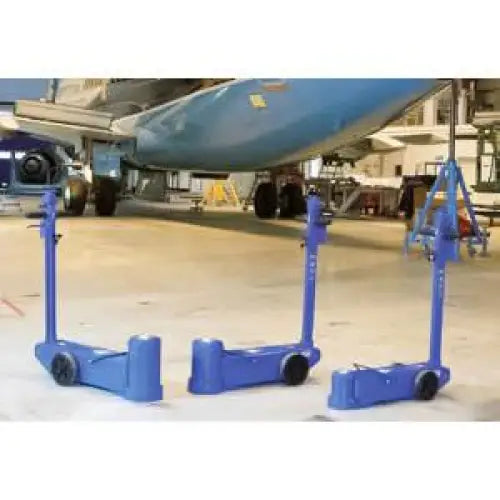

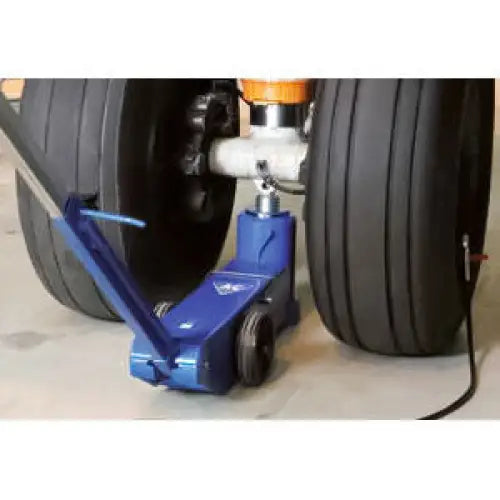

MLG - Main Landing Gear
Airbus: A300 / A310, A319 / A320 / A321 (MLG-single only), A330-300, A340-200 / -300
Boeing: B717, B727, B737-100 / -200 / -300 / -400 / -500, B737-600 thru -900, B767-400ER
McDonnell Douglas: MD11, DC8, DC9, DC10
Lockheed: L1011NLG - Nose Landing Gear
Airbus: A340 / -500 / -600
Boeing: B727, B767-200 / -300 / -400ER, B777-200 / -300 / -300ER
McDonnell Douglas: MD11
