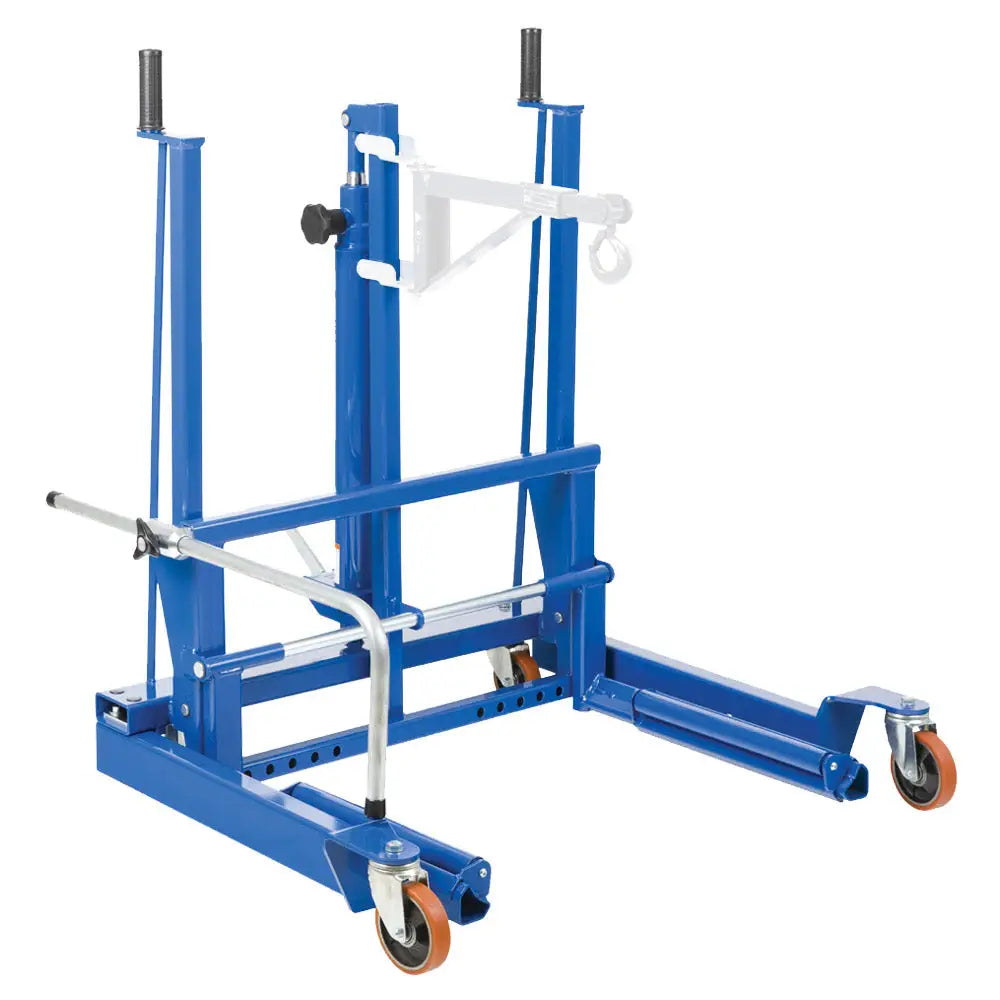

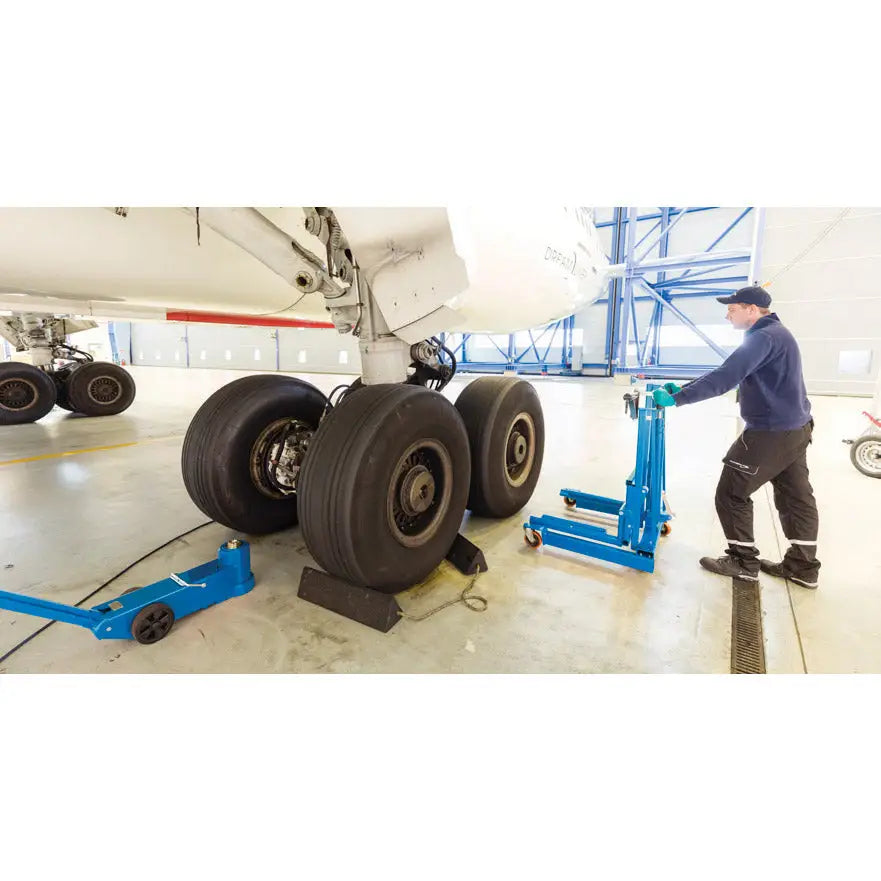

AC 1,100 lbs aircraft wheel trolley to remove the wheel and brake drums on aircraft.
Features:
- Flexible and ergonomic design
- High lifting height / 28.23 in makes it ideal for lifting off a transport wagon
- Adjustable lifting arms for wheel sizes/diameter 10.63 - 51.18 in
- Lifting arms with roller bearings for easy rotation of the wheel into the correct position
- Pedal-operated pump leaving both hands free for working
- Hand-operated dead man's release for optimum safety while lowering
- With two pcs. 360º revolving wheels
Specs:
Capacity: 1100 lbs
Height: 47.17 in
Length: 33.30 in
Width: 45.28 in
Roller-/fork length: 16.38 / 23.62
Roller distance: 10.24 - 27.95 in
Lifting height: 28.23 in
Wheel sizes (diameter): 10.63 - 51.18 in
Weight: 220 lbs

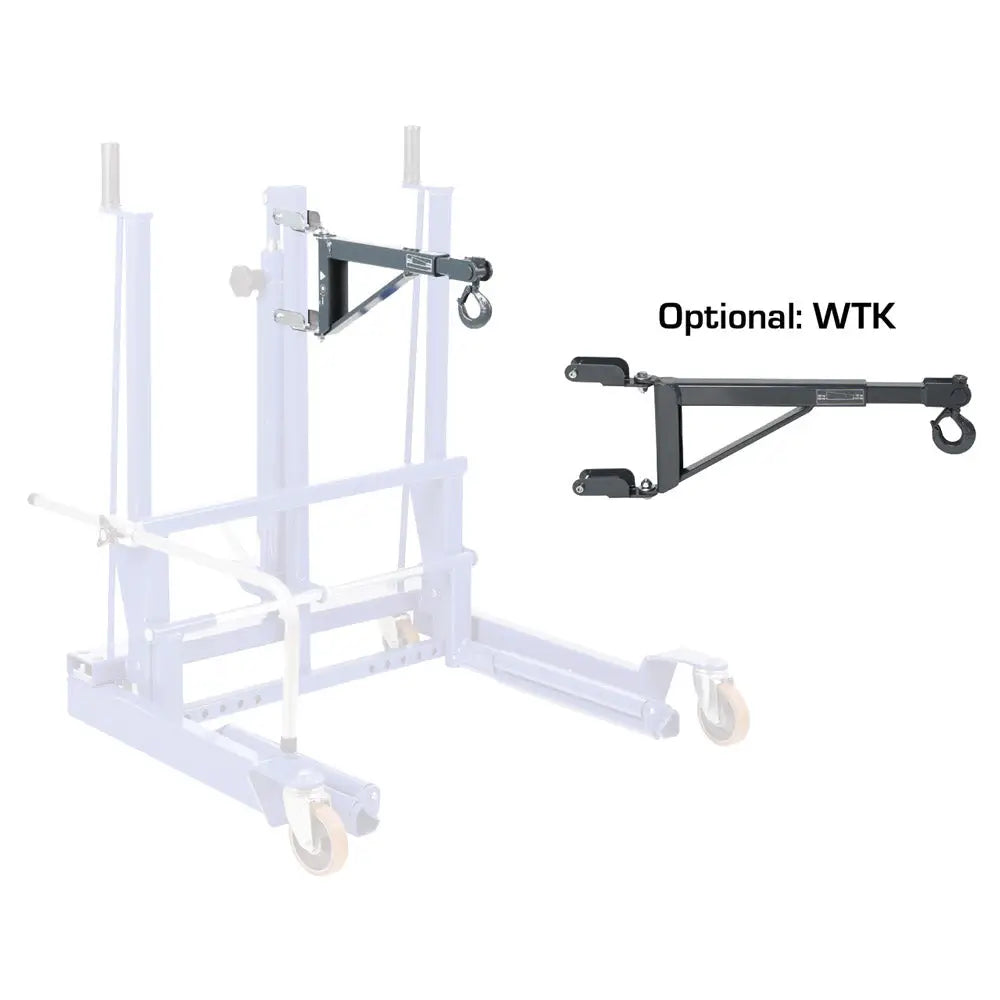

WTK Crane Arm (Optional)
Capacity: 55-220 lbs
Swivel: Yes, One side
Aditional: 360 Deg. Pivoting Hook
